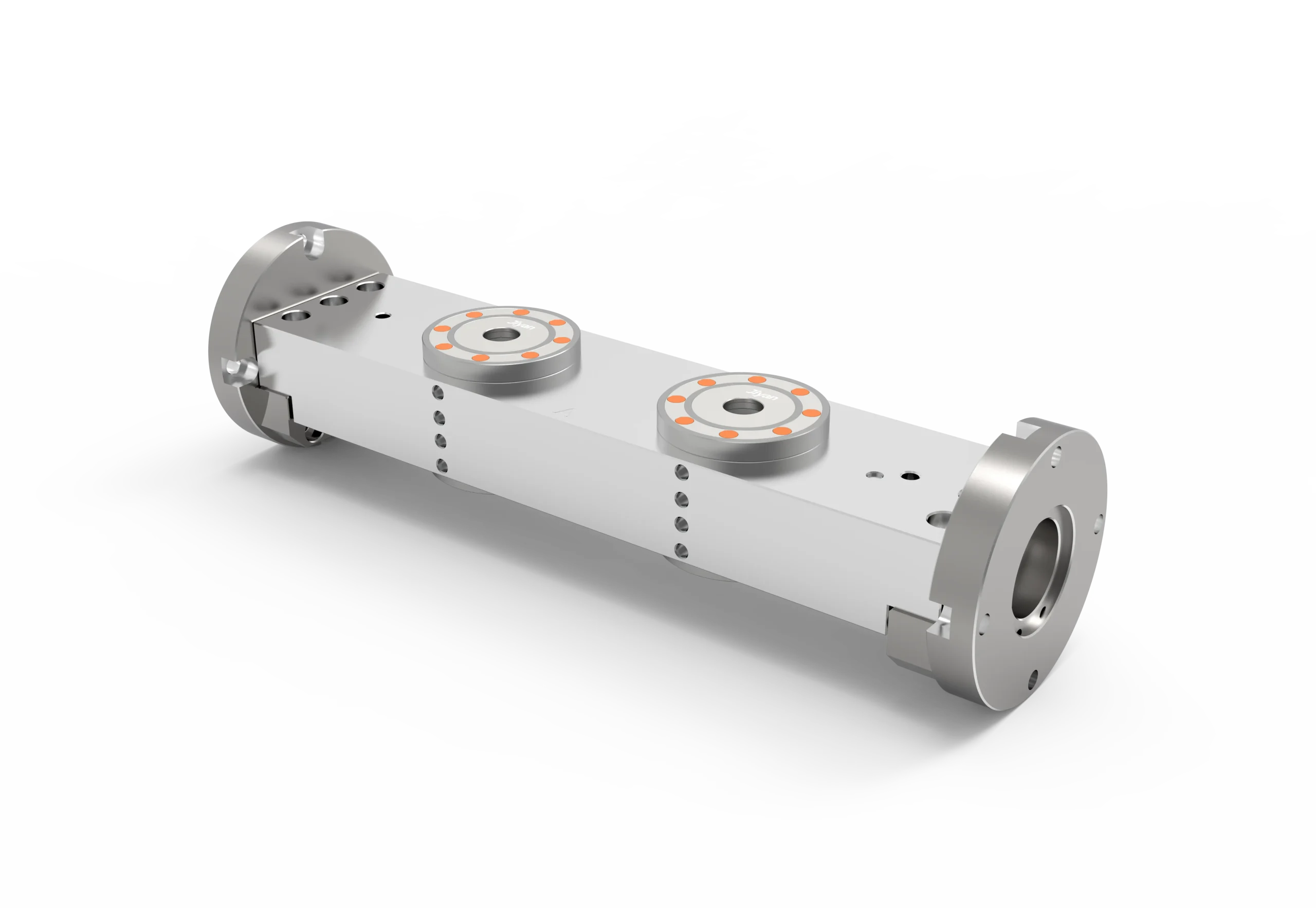

4th-Axis Dual-Station Pneumatic Zero Point Plate

4th-Axis Dual-Station Pneumatic Zero Point Plate

The JIYAN 4th-Axis Dual-Station Pneumatic Zero Point Plate is designed for rotary machining applications that need flexible, repeatable workholding. Installed on a 4th-axis rotary table, its two zero-point stations allow operators to mount two compatible fixtures or workholding setups on one plate, helping reduce setup changes and improve machine utilization. Explore our H18 Pneumatic Zero Point System range for related configurations.

For suitable parts and tool-access requirements, the rotary axis can index the workpiece through multiple machining angles, bringing more multi-face machining capability to a 4-axis machine without immediately investing in a 5-axis machine. Actual access depends on part geometry, fixture height, tool reach, and machine clearance.

Key Benefits

• Dual-station workholding: Mount two compatible fixtures or configure two different setups to support batch machining and faster changeovers.
• Pneumatic zero-point clamping: Supports efficient fixture exchange when paired with a compatible pneumatic supply, pull studs, and clamping interface.
• Multi-angle rotary machining: Designed for 4th-axis applications requiring access to multiple sides of a workpiece.
• Improved setup efficiency: Reduce repeated alignment work when changing between compatible fixtures.
• Flexible production: Suitable for mixed-part jobs, small batches, and repeat production where setup time matters.

Technical Specifications

Dimensions above are transcribed from the supplied product drawing. Confirm the mounting interface, pneumatic requirements, pull-stud compatibility, and machine clearance with JIYAN before ordering.

Recommended Applications

• 4-axis CNC milling: Index parts to machine multiple faces in one setup where tool access permits.
• Two-fixture production: Use two compatible fixtures for different part numbers or machining operations.
• Small-batch and mixed production: Prepare one station while the other is in use, where the production process allows it.
• Automotive and precision components: Support repeatable positioning for components that require machining from several angles.
• Shops seeking more multi-face capability: Expand suitable 4-axis machining workflows without replacing the machine with a 5-axis model.

How to Choose the Right Setup

Before selecting this dual-station pneumatic zero point plate, check the rotary table mounting dimensions, workpiece envelope, fixture and pull-stud interface, pneumatic connection requirements, and the clearance between the tool, fixture, and machine. A 4th-axis setup can provide multi-angle access, but it does not reproduce every simultaneous 5-axis toolpath or every undercut capability of a true 5-axis machine. Browse the wider Zero Point System category to compare related workholding options.

Request Compatibility Information

To confirm compatibility, share your rotary-table model, fixture type, workpiece dimensions, and required machining angles with JIYAN. Request a quote for help selecting a suitable zero-point workholding configuration.
