A Zero-Point Positioning System That Just Locates
A zero point positioning system lets one pallet, sub-plate or vise drop onto a receiver and locate to repeatable datums in a single motion — no indicating, no shimming. JIYAN builds the clamps, plates and towers that make that happen, so a part staged off the machine swaps onto the mill, 5-axis or tombstone in seconds. Every receiver is machined, heat-treated, ground and CMM-inspected in-house.
Zero-point clamps, plates & towers
Every model is a real, shipped product. Click through for specs, pull-stud options and CAD.

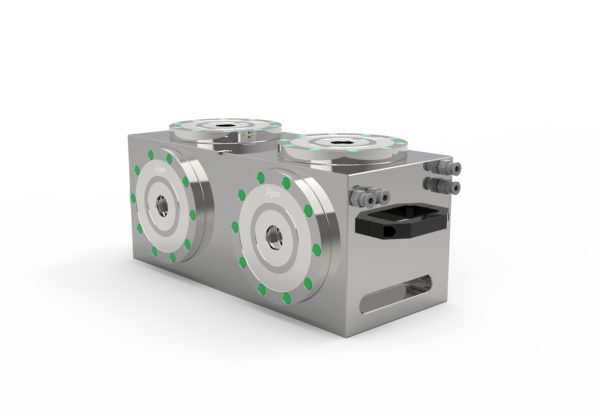

Zero-Point Clamp (4-Station Cube)
4-station zero-point cube for high-density fixturing.
View product
Pick the right zero-point system
By station count

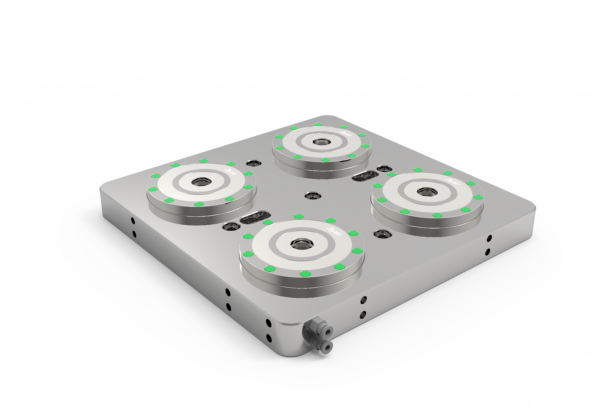

Single and 2-station receivers suit one-off and paired parts. 4-station cubes multiply parts per setup for high-volume and lights-out work.
By shape

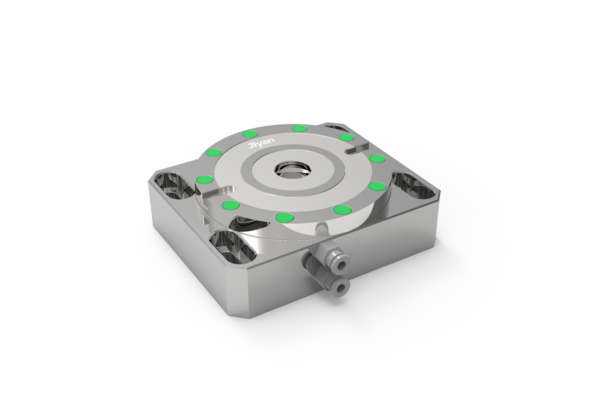

Long and twin-base receivers hold extended or paired workpieces. Round receivers drop onto rotary and 4th-axis jobs without re-indicating.
By density

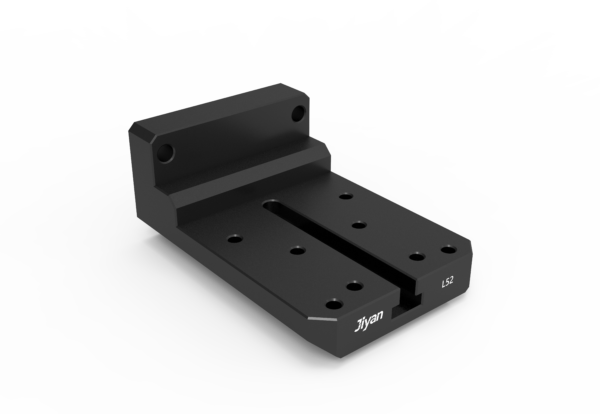

Stack receivers on a zero-point tower or tombstone to run many parts per cycle — ideal when machine spindle time is your constraint.
Related workholding
Pair your zero-point system with the workholding that fits the job.
Zero-point positioning questions
What is a zero point positioning system?
A zero point positioning system is a set of receivers and matching pallets (or sub-plates, vises, towers) that all locate to the same datums. You machine a part, remove the pallet, and any other machine fitted with the same receiver picks it up at the identical position — no re-indicating, no loss of accuracy between setups.
How repeatable is zero-point location?
JIYAN zero-point receivers locate within a few microns, so a part staged off the machine returns to the same position on the mill, 5-axis or tombstone. That repeatability is what lets you spread work across machines and shifts without re-qualifying.
Can a zero-point system be used for 5-axis machining?
Yes. Low-profile and long/round receivers sit clear of the toolpath, letting you reach four or five faces in one setup. The pallet swaps between machines without re-indicating.
How do zero-point towers help high-volume work?
A zero-point tower (tombstone) carries several receivers at once, so you run many parts per cycle. Stage and inspect off the machine while the spindle keeps cutting — the classic lights-out gain.
How fast can I get a quote for a zero-point system?
Send your part drawing and process constraints. Our engineers return a fixture direction and quote, typically within 24 hours.
