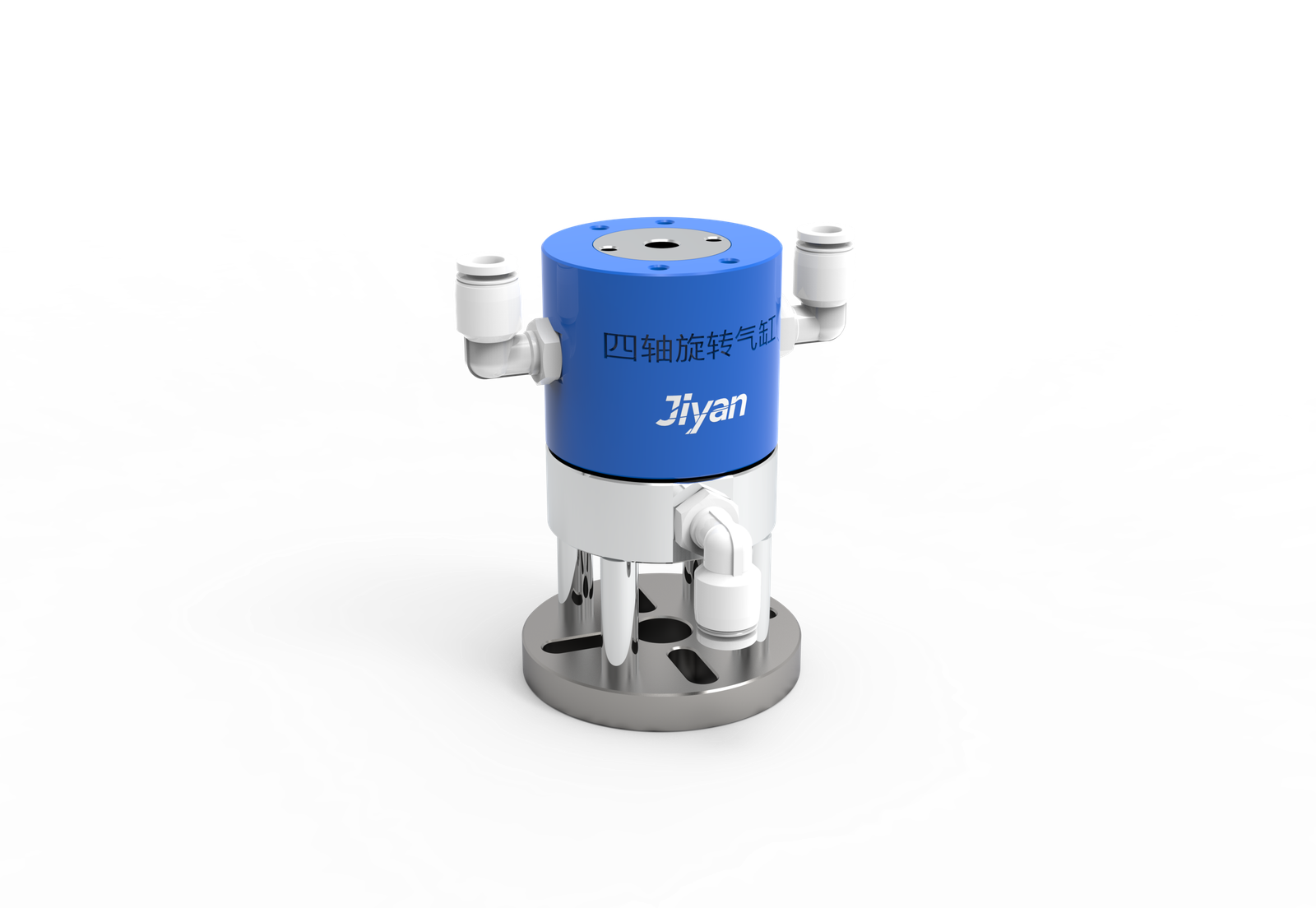

JIYAN 4th Axis Pneumatic Rotary Cylinder – For Zero Point Systems
A compact pneumatic rotary cylinder designed for 4th axis zero point clamping applications. Compatible with JIYAN H18 series systems, delivers smooth and reliable rotary motion, ±0.005 mm repeatability, and operates up to 1.2 MPa (174 psi). Ideal for CNC rotary tables, indexers, automated pallet changing, and 5‑axis machines.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | To be confirmed (reference: 34 series) |
| Type | 4th axis pneumatic rotary cylinder |
| Key dimension (reference) | 34 mm (refer to drawing for exact feature – e.g., bore, height, or mounting pitch) |
| Compatible with | JIYAN H18 series zero point clamping systems |
| Repeat positioning accuracy | ±0.005 mm (±0.0002″) – typical for H18 series |
| Max. operating pressure | 1.2 MPa (174 psi) – typical for H18 series |
| Actuation | Pneumatic (rotary) |
Note: Dimension “34 mm” shown in the drawing is not labeled. Please refer to the original product drawing for exact measurements (bore, stroke, piston diameter, mounting hole spacing, etc.).
Pneumatic rotary actuation – designed for 4th axis zero point clamping applications
Compact cylinder design – saves space on rotary tables, indexers, and 4th axis units
Integrated mounting interface – directly compatible with JIYAN zero point systems
Smooth and reliable rotary motion – provides consistent clamping and unclamping cycles
High repeatability – maintains ±0.005 mm positioning for precise pallet registration
High pressure rating – operates up to 1.2 MPa (174 psi) for robust industrial performance
Corrosion resistant construction – suitable for wet machining and coolant environments
Hardened internal components – designed for high‑cycle automated production
4th axis CNC machining centers – rotary actuation for zero point clamping on indexers
Automated pallet changing systems – pneumatic rotary control for quick fixture plate swaps
5‑axis machines – compact form factor fits limited space around rotary axes
CNC rotary tables – reliable clamping and unclamping for multi‑side part processing
High‑volume production cells – pneumatic actuation enables easy automation integration
Retrofit existing 4th axis setups – upgrade conventional workholding to zero point clamping
Designed specifically for zero point systems – optimized for H18 series clamps and pull studs
Compact and space efficient – 34 mm reference dimension fits tight 4th axis envelopes
Pneumatic only – no hydraulic power unit required, clean and simple installation
Precision machined components – ensures smooth rotation and long service life
Automation ready – consistent rotary actuation for robot‑tended work cells
Custom configurations available – stroke, mounting pattern, and port locations upon request
