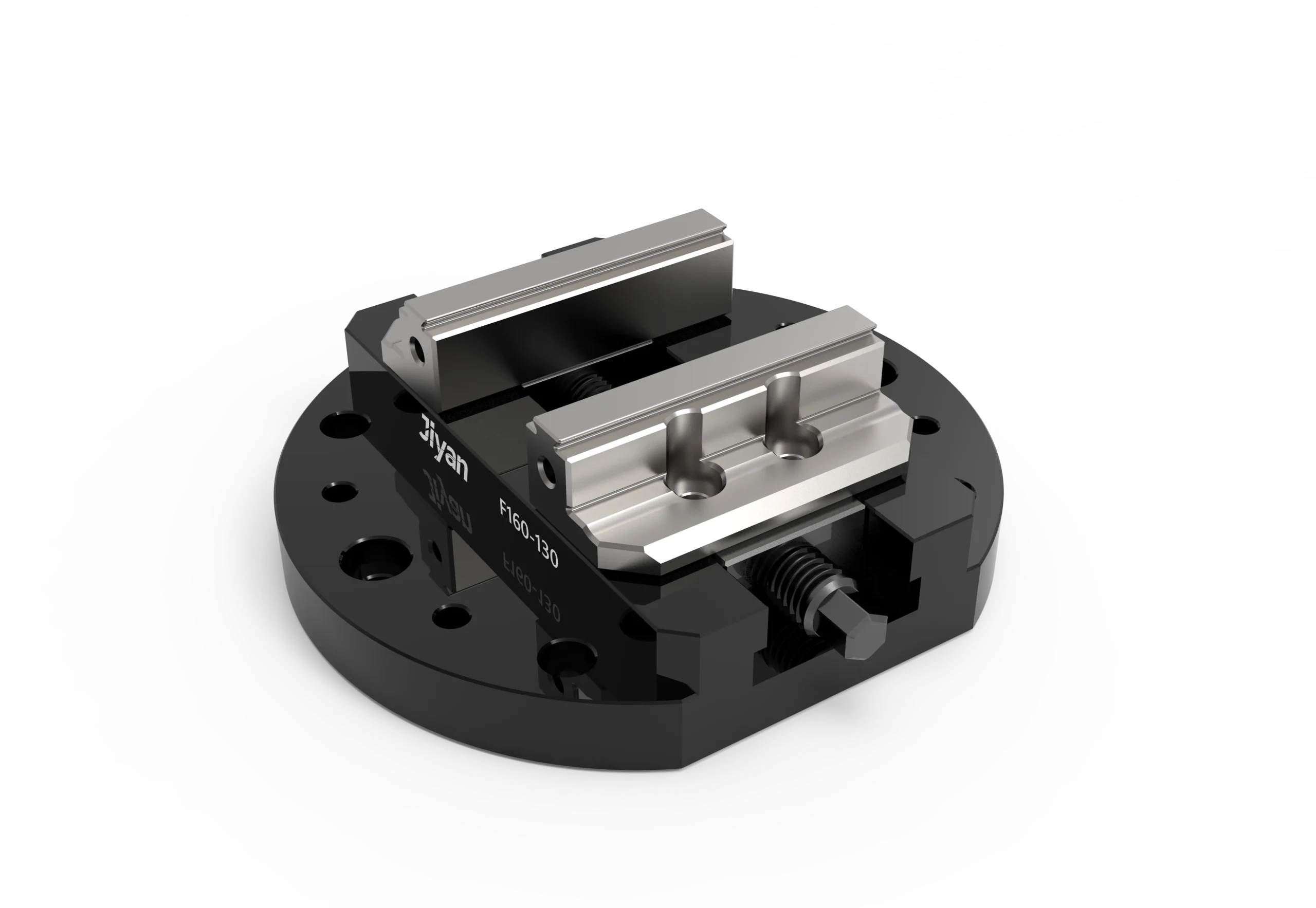

F160‑130 Pneumatic Self‑Centering Vise (Flange Type)
A compact self‑centering vise with Ø158 mm flange mount, 0–130 mm clamping range, ±0.01 mm repeatability, and Ø52 pull stud compatibility. Ideal for CNC milling, zero point pallet systems, and precision automated workholding for small to medium workpieces.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | F160‑130 |
| Type | Self‑centering vise, flange mount |
| Dimensions (D × H) | Ø158 × 54.8 mm (6.22″ × 2.16″) |
| Clamping range | 0–130 mm (0–5.12″) |
| Repeat clamping accuracy | ±0.01 mm (±0.0004″) |
| Weight | 4.0 kg (8.8 lbs) |
| Max. torque | 70 Nm (51.6 ft‑lbs) |
| Jaw type | Split type hardened steel jaws |
| Jaw mounting | M16 through holes on PCD Ø135 mm × 4 positions |
| Mounting option | Ø52 pull stud hole |
| Key dimensions | 140 mm (L) × 95.5 mm (W) × 49.7 mm (jaw height), 82 mm jaw opening, 25/12 mm reference (see drawing) |
Self‑centering design – automatically centers the workpiece for consistent positioning
Wide clamping range – 0–130 mm capacity handles a broad range of part sizes
Compact flange mount – Ø158 mm flange for easy installation on CNC tables
High precision – ±0.01 mm (0.0004″) repeatability for tight tolerance machining
Split hardened jaws – durable, wear‑resistant, and replaceable
Zero point ready – Ø52 pull stud hole for direct mounting on zero point pallet systems
High torque capacity – 70 Nm clamping torque for secure workholding
Lightweight and compact – 4.0 kg weight and 54.8 mm height save machine space
Flexible jaw mounting – M16 through holes on PCD Ø135 for easy jaw attachment
CNC milling and drilling – ideal for prismatic parts requiring centered clamping
Automated pallet systems – Ø52 pull stud enables quick change on zero point systems
Round and square workpiece clamping – 130 mm capacity handles diverse part shapes
High‑mix / low‑volume production – quick jaw changes for different part sizes
4th/5th axis machining – compact flange mount fits rotary tables and indexers
Precision machining – ±0.01 mm repeatability for high‑accuracy parts
Small to medium workpiece clamping – 130 mm range covers most common part sizes
Self‑centering advantage – eliminates manual centering, reduces setup time
High precision – ±0.01 mm repeatability ensures consistent part quality
Zero point ready – Ø52 pull stud hole allows direct mounting on zero point pallets
Split jaw design – easy replacement and customization for different part geometries
Precision ground surfaces – verified for flatness and parallelism
Compact flange mount – low profile saves Z‑axis clearance on CNC machines
Hardened steel body – durable construction for high‑cycle production
Flexible jaw mounting – M16 holes on PCD Ø135 accommodate various jaw types
