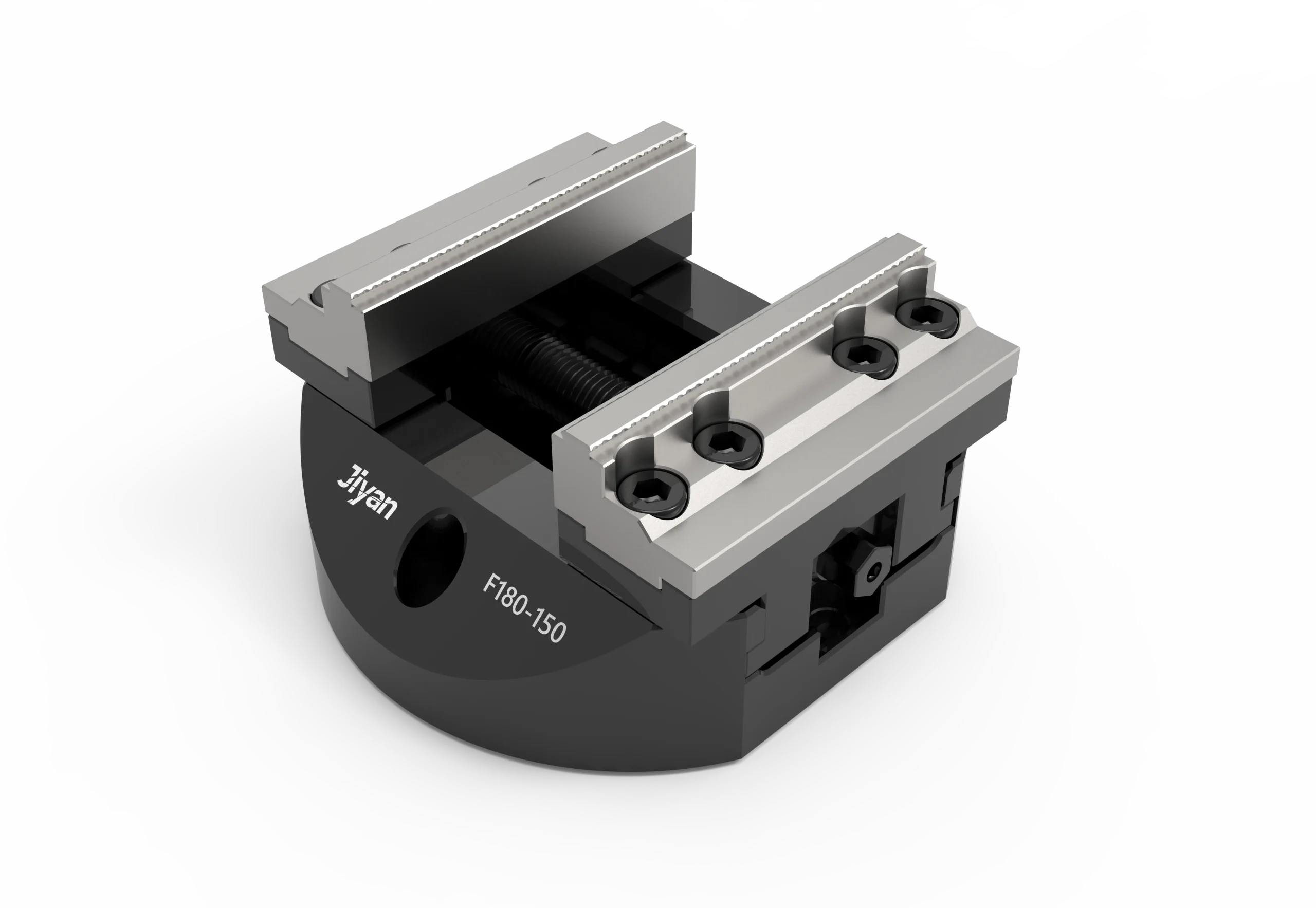

F180-150 Pneumatic Self-Centering Vise (Flange Type)

F180-150 Pneumatic Self-Centering Vise (Flange Type)

Specifications

Key Features

• Self‑centering design – automatically centers the workpiece for consistent positioning

• Dual clamping modes – supports both external clamping (0–90 mm) and internal clamping (50–150 mm)

• Large flange mount – Ø180 mm flange for stable mounting on CNC tables

• High repeatability – ±0.015 mm (0.0006″) for reliable production accuracy

• Split hardened jaws – durable, wear‑resistant, and replaceable

• Dual pull stud compatibility – accepts both Ø52 pull studs and Ø96 pull studs for zero point mounting

• High torque capacity – 70 Nm clamping torque for secure workholding

• Heavy‑duty construction – 8.5 kg weight ensures rigidity for large workpieces

Application Scenarios

• CNC milling and drilling – ideal for large prismatic parts requiring centered clamping

• Automated pallet systems – dual pull stud options (Ø52 / Ø96) enable quick change on zero point systems

• Round and square workpiece clamping – external and internal modes handle diverse part shapes

• High‑mix / low‑volume production – quick jaw changes for different part sizes

• 4th/5th axis machining – compact flange mount fits rotary tables and indexers

• Large part machining – 150 mm internal clamping capacity handles oversized workpieces

• Precision machining – ±0.015 mm repeatability for tight tolerance parts

Why Choose JIYAN

• Self‑centering advantage – eliminates manual centering, reduces setup time

• Dual clamping flexibility – one vise handles both external and internal workpieces

• Zero point ready – Ø52 and Ø96 pull stud holes allow direct mounting on zero point pallets

• Split jaw design – easy replacement and customization for different part geometries

• Precision ground surfaces – verified for flatness and parallelism

• Large flange mount – stable and rigid for heavy workpiece clamping

• Hardened steel body – durable construction for high‑cycle production
