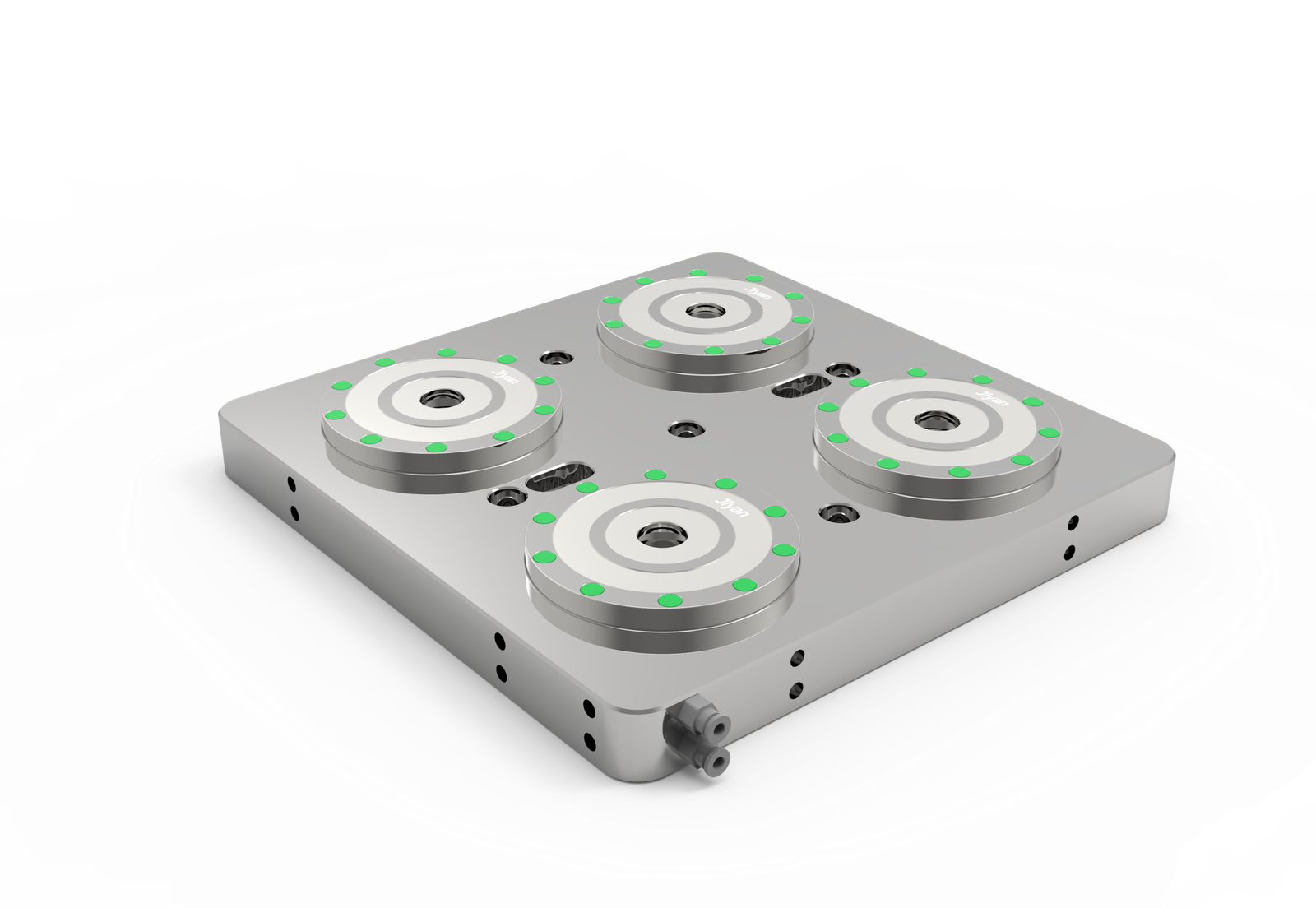

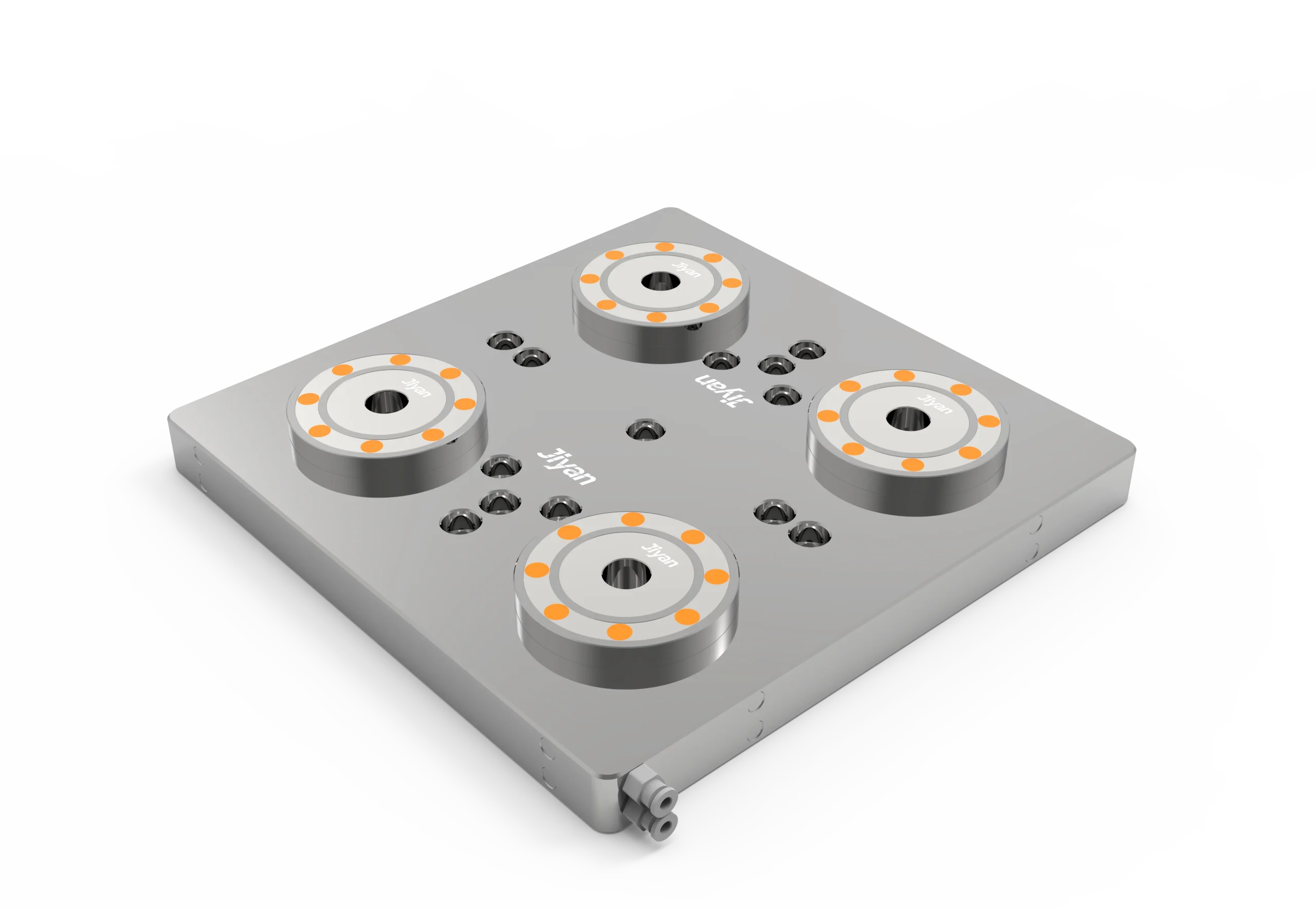

H18‑4F Pneumatic Zero Point Clamp (4 Station)
An integrated four‑station zero point clamping system on a 380×380 mm square base, ultra‑low 48 mm profile, ±0.005 mm repeatability, and 220 kN total pull‑down force. Designed for multi‑pallet CNC workcells, tombstone fixtures, 5‑axis machines, and automated high‑volume production.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | H18‑4F |
| Type | Four‑station zero point clamp (4-in-1 integrated) |
| Dimensions (L × W × H) | 380 × 380 × 48 mm (14.96″ × 14.96″ × 1.89″) |
| Repeat positioning accuracy | ±0.005 mm (±0.0002″) |
| Max. operating pressure (air) | 1.2 MPa (174 psi) |
| Pull‑down force (per clamp) | 55 kN (12,364 lbf) |
| Clamping force (per clamp) | 17 kN (3,822 lbf) |
| Total pull‑down force (all 4 clamps) | 220 kN (49,456 lbf) |
| Number of clamping stations | 4 |
| Actuation | Pneumatic (manifold or individual ports) |
Note: Drawing shows additional dimensions (250, 200, 12.5, 20, 13). Please refer to the original product drawing for exact mounting hole positions and bolt specifications.
Four zero point clamps in one square plate – complete 4‑station pallet changing system on a single base
Ultra‑low profile – only 48 mm height, preserves Z‑axis travel for tall workpieces
Square 380×380 mm footprint – matches standard CNC pallet sizes and tombstone fixtures
High repeatability – ±0.005 mm (0.0002″) per station for consistent pallet registration
Massive total pull‑down force – 220 kN (49,456 lbf) secures even the heaviest parts
High max. air pressure – 1.2 MPa (174 psi) for industrial‑grade reliability
Precision ground surface – entire top surface flat and parallel for accurate fixturing
Hardened steel construction – designed for high‑cycle automated production
Multi‑pallet CNC systems – four independent clamping stations for sequential machining
Tombstone fixtures – mount directly on HMC tombstone faces for 4‑side workholding
5‑axis machining centers – low profile and square shape ideal for rotary table mounting
Automated production cells – robotic pallet changing across four stations with zero‑point repeatability
High‑mix / high‑volume manufacturing – quick changeover between different fixture plates
Heavy and large workpieces – 220 kN total pull‑down distributes clamping force evenly
EDM and precision grinding – four registration points provide exceptional stability
Complete 4‑station solution – no need to align and mount four separate single clamps
Lowest profile 4‑station system – 48 mm height keeps workpiece close to machine table
Factory‑set station spacing – eliminates measurement errors and reduces setup time
Manifold air distribution – single air connection activates all four stations simultaneously
Precision ground reference surface – verified for flatness and perpendicularity
Pneumatic only – no hydraulic power unit required, clean and simple
Automation ready – consistent zero‑point locking for robot‑tended pallet systems
Custom configurations – mounting hole patterns available upon request
