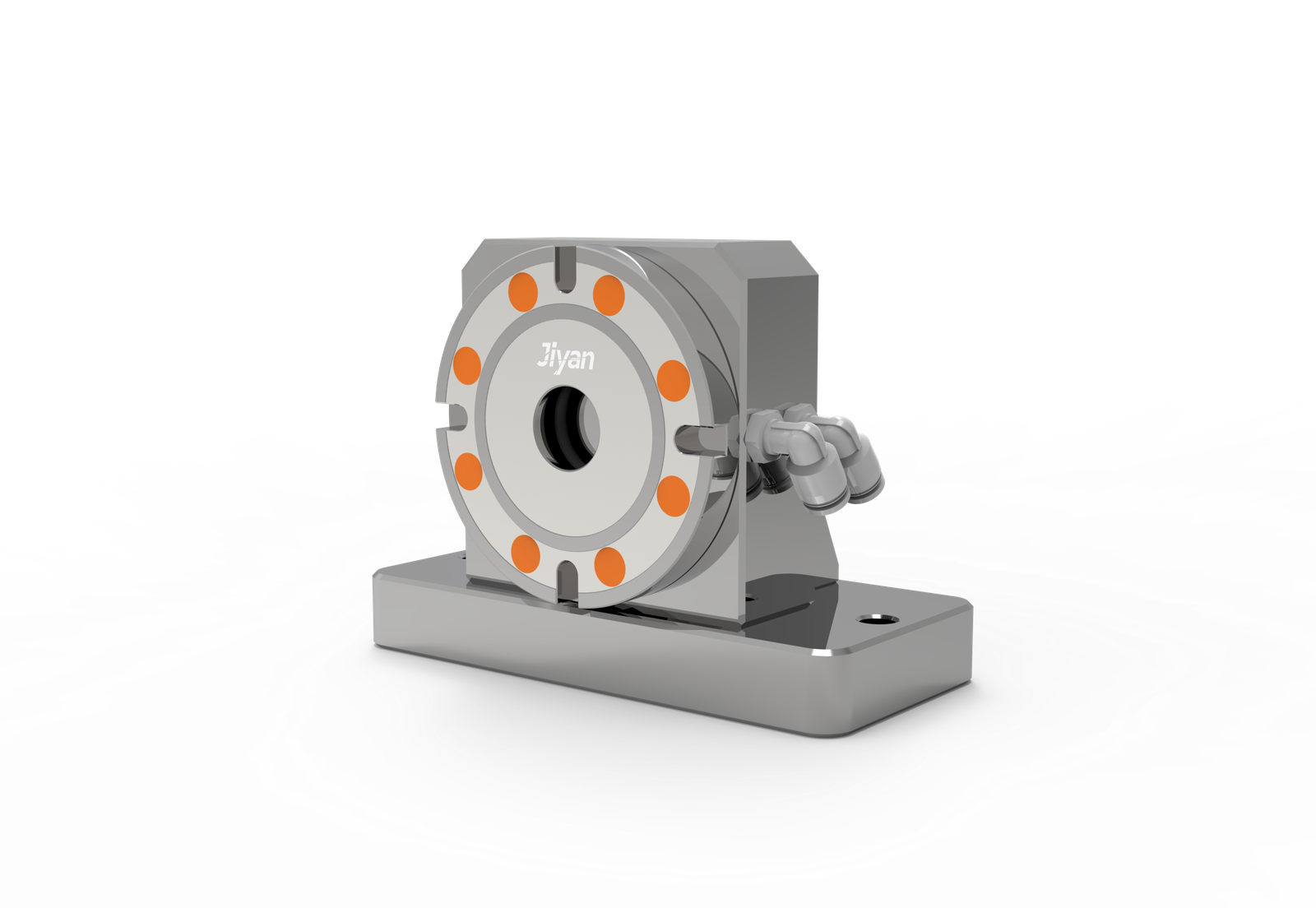

JIYAN H18‑90‑1L Pneumatic Zero Point Clamp – Long Base
A single‑port pneumatic zero point clamp with a long rectangular base (185×135×90 mm), ±0.005 mm repeatability, 55 kN pull‑down force, and 17 kN clamping force. Designed for large fixture plates, tombstone setups, and heavy workpiece applications.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | H18‑90‑1L |
| Type | Single hole zero point clamp (long base) |
| Dimensions (L×W×H) | 185 × 135 × 90 mm (7.28″ × 5.31″ × 3.54″) |
| Repeat positioning accuracy | ±0.005 mm (±0.0002″) |
| Max. operating pressure (air) | 1.2 MPa (174 psi) |
| Pull‑down force (at 0.6 MPa) | 55 kN (12,364 lbf) |
| Clamping force (at 0.6 MPa) | 17 kN (3,822 lbf) |
| Actuation | Pneumatic (single port) |
Single pneumatic port activation – independent zero‑point clamping with simple on/off control
High repeatability – ±0.005 mm (0.0002″) for precise and consistent pallet changes
Long rectangular base – 185×135 mm footprint offers increased mounting stability
Taller profile – 90 mm height provides additional clearance for fixture stack‑ups
Heavy pull‑down & clamping force – 55 kN (12,364 lbf) pull‑down / 17 kN (3,822 lbf) clamping
High max. air pressure – operates up to 1.2 MPa (174 psi) for demanding applications
Hardened steel construction – wear‑resistant body for high‑duty production cycles
Large fixture plates – longer base distributes clamping load evenly across bigger pallets
Vertical machining centers (VMCs) – extra height improves accessibility for manual loading
Automated pallet systems – repeatable zero‑point locking for robotic work cells
Tombstone fixtures for HMCs – multiple units mount securely on each tombstone face
Heavy workpiece clamping – 55 kN pull‑down secures large or unbalanced parts
Stable rectangular footprint – resists rotation and torque better than square or round bases
Taller design – 90 mm height allows integration with custom risers or sub‑plates
Precision ground locating surfaces – each unit verified for flatness and lock repeatability
Pneumatic only – no hydraulic power unit needed, simplifies shop floor setup
Custom mounting hole patterns – available upon request for non‑standard machine tables
