Specifications
| Parameter | Value |
|---|---|

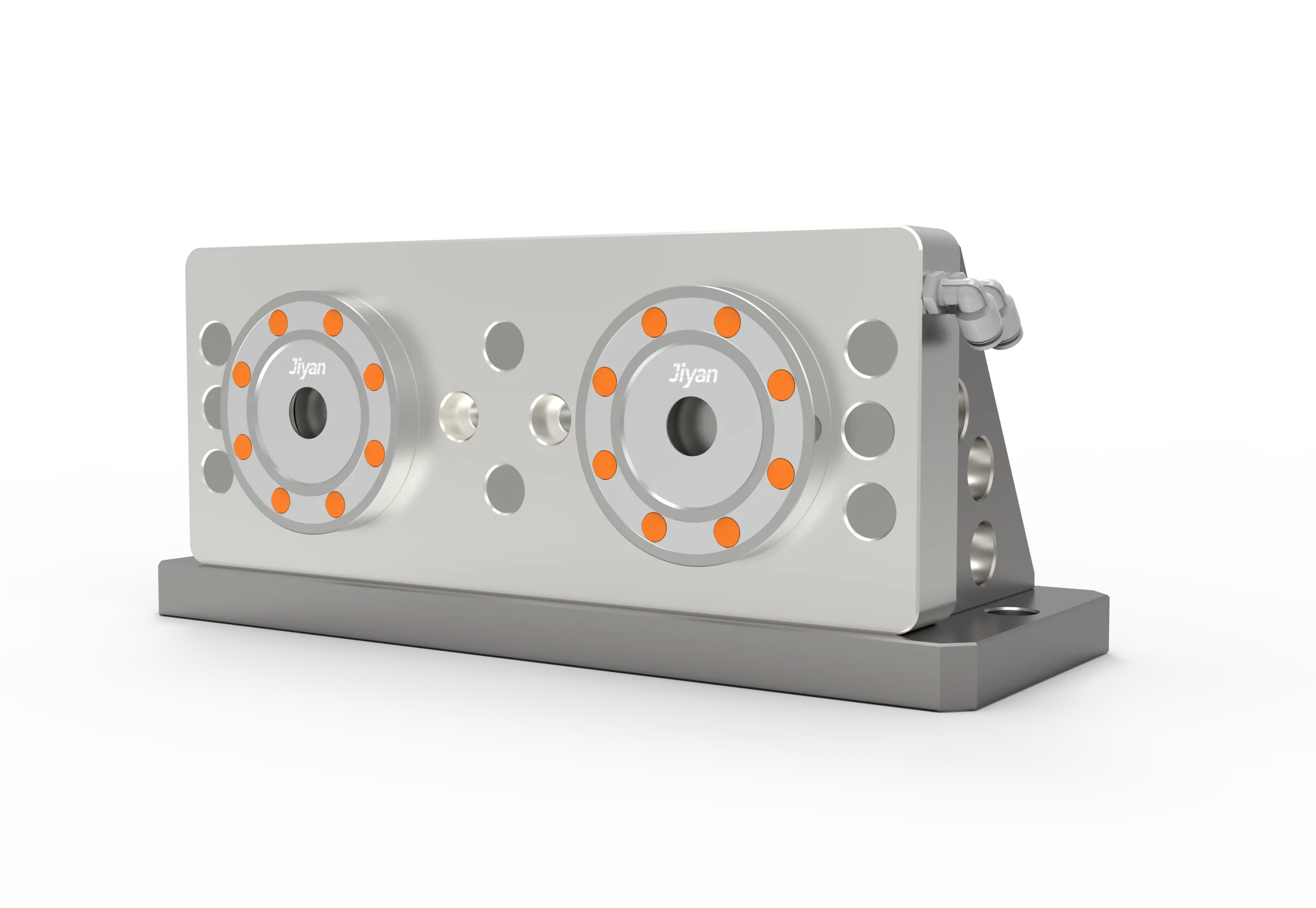

| Model | H18 Double-Sided |
| Brand | JIYAN / JIYANVISE |
| Overall Length | 620 mm |
| Overall Width | 168 mm |
| Height | 96 mm |
| Hole Spacing | 200 mm |
Key Features
-
JIYAN precision engineering – designed and manufactured to exacting standards
-
Dual-face (double-sided) design – provides clamping and locating capability on both sides or opposite faces
-
High repeatability – ±0.005 mm for precise pallet and fixture changes
-
Long and narrow footprint – 620×168 mm base offers stability for large fixture setups while saving table width
-
Heavy pull‑down & clamping force – 55 kN pull‑down / 17 kN clamping per station
-
High max. air pressure – 1.2 MPa for robust industrial environments
-
Hardened steel construction – wear‑resistant body for high‑cycle production
-
JIYANVISE quality – precision ground surfaces for reliable, long‑lasting performance
Application Scenarios
-
Double‑sided fixture plates – clamp on both faces for maximum workholding density
-
Tombstone fixtures for HMCs – dual‑face design for multi‑side machining
-
Automated pallet systems – consistent zero‑point locking for robotic work cells
-
High‑volume production – quick changeover between fixture plates on both faces
-
Large and complex workpieces – stable base supports oversized parts
Why Choose JIYAN
-
Dual‑face versatility – enables more flexible workholding configurations
-
Stable long base – 620 mm length resists tipping and torque
-
Narrow width – 168 mm saves valuable table space
-
Precision ground surfaces – each unit verified for flatness and lock repeatability
-
Pneumatic only – no hydraulic power unit required, reduces shop floor complexity
-
Custom mounting patterns – available upon request for specific machine tables
-
JIYANVISE reliability – trusted by CNC professionals worldwide
