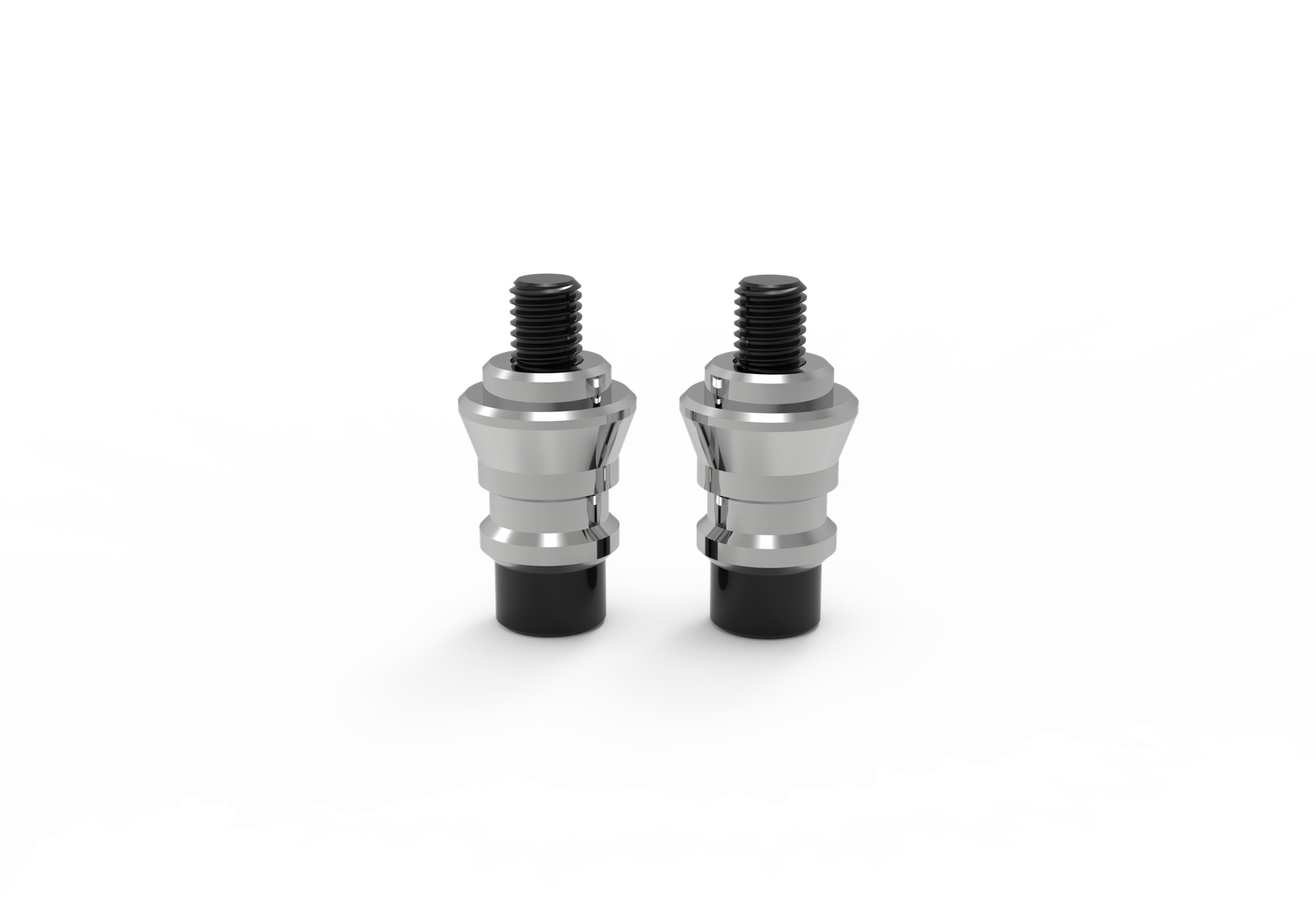

JIYAN H18-LD Zero Point Pull Stud – For H18 System
A precision ground pull stud (25×50 mm) hardened alloy steel construction, ±0.005 mm repeatability, and 55 kN pull‑down force capacity. Fully compatible with all JIYAN H18 series zero point clamping systems. Ideal for pallet mounting, fixture registration, and quick change workholding.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | H18‑LD |
| Type | Zero point pull stud (locating pin) |
| Dimensions (Diameter × Length) | 25 × 50 mm (0.98″ × 1.97″) |
| Repeat positioning accuracy | ±0.005 mm (±0.0002″) |
| Compatibility | JIYAN H18 series zero point clamping systems |
| Material | Hardened alloy steel |
| Surface finish | Precision ground with corrosion protection |
Precision ground locating surfaces – ensures ±0.005 mm repeatability when used with H18 clamps
Hardened alloy steel construction – wear‑resistant for high‑cycle production environments
Optimized pull‑down geometry – engineered for 55 kN pull‑down force capacity
Standard H18 interface – fully compatible with all JIYAN H18 series zero point clamps
Corrosion resistant finish – suitable for wet machining and coolant environments
Compact 25×50 mm design – fits standard pallet and fixture mounting holes
Self‑cleaning groove design – debris evacuation during clamping for consistent seating
Pallet mounting on H18 zero point clamps – secure fixture plates to any H18 series clamp
Fixture plate registration – provides accurate locating and clamping in one stud
Quick change workholding – mount pull studs on multiple pallets for fast changeover
Automated pallet systems – consistent pull stud geometry for robotic pallet handling
Retrofit existing fixtures – install H18-LD pull studs on current fixture plates to upgrade to zero point
Tombstone and cube fixtures – mount pull studs on all fixture faces for multi‑side machining
Factory matched to H18 clamps – guaranteed fit and repeatability with JIYAN zero point systems
Precision ground taper – provides both centering and pull‑down in one stud
Hardened for longevity – through‑hardened body resists deformation under repeated clamping
Consistent height – all pull studs machined to identical length for flush pallet mounting
Debris evacuation – grooves prevent contamination from affecting repeatability
Available in quantity – order sets for multiple pallets and fixtures
Custom configurations available – alternate lengths and mounting threads upon request
