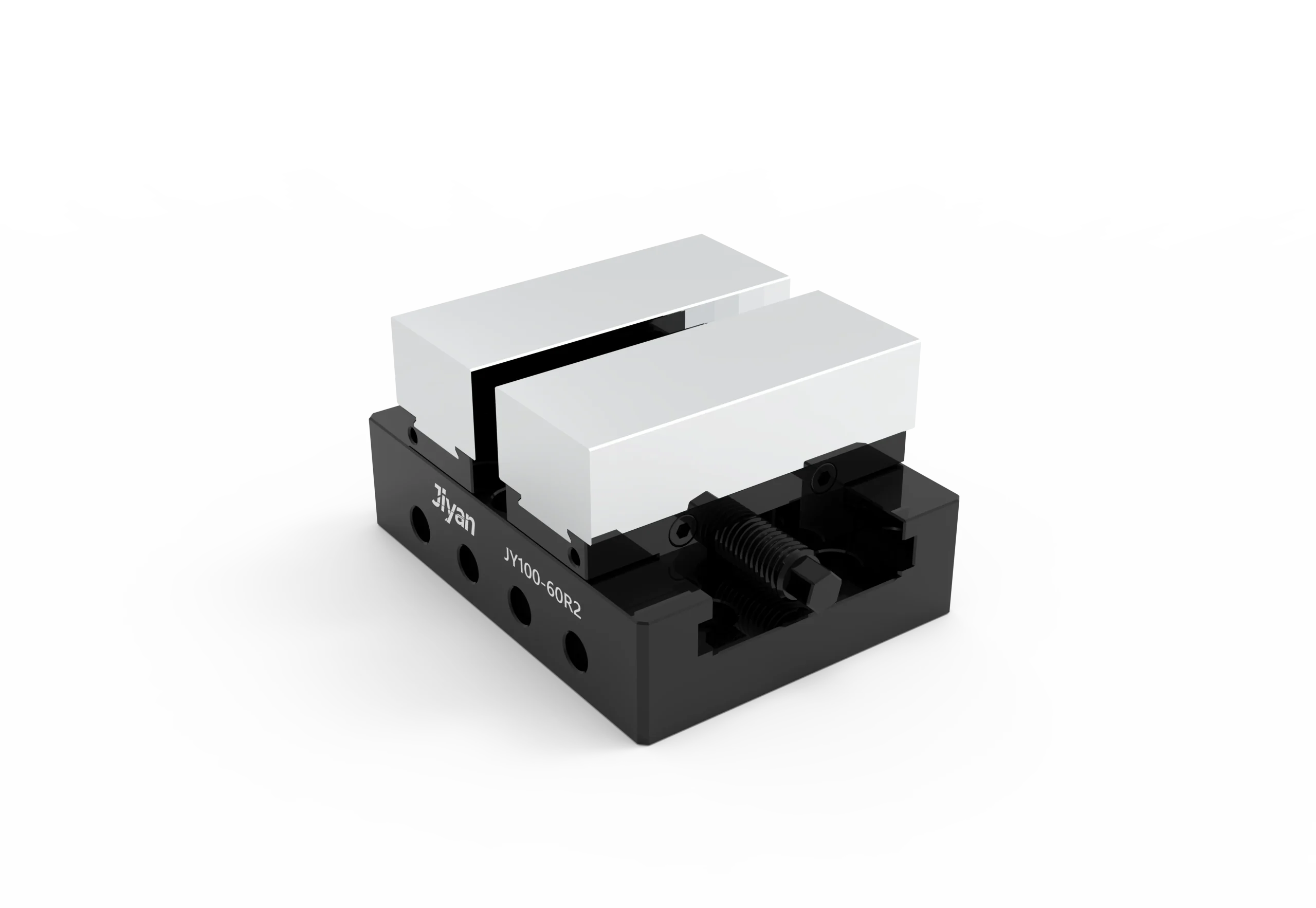

JIYAN JY100-60R2 self-centering CNC vise – soft + aluminum jaw combo, 130×100×70 mm, 0.015 mm repeatability, 40 N·m clamping torque. 52-type & H18 pull-stud holes.
We typically respond within 24 hours.
The JIYAN JY100-60R2 is a compact self-centering CNC vise engineered for repeatable, high-precision workholding on milling, drilling, and 5-axis machining centers. With an integrated hard-jaw body and 0.015 mm repeatability across the full clamping range, it delivers consistent on-center clamping that shortens setup time and protects tight tolerances.
| Model | JY100-60R2 |
|---|---|
| Series | JIYAN JY100 self-centering vise |
| Dimensions (L×W×H) | 130×100×70 mm |
| Clamping Range | 0–60 mm |
| Repeatability | 0.015 mm |
| Max. Clamping Torque | 40 N·m |
| Weight | 3.4 kg |
| Jaw Type | Integral hard jaw (soft) + profiled aluminum jaw |
| Base / Locating | 52-type & H18 pull-stud holes |
Ideal for CNC milling, drilling, tapping, and 5-axis simultaneous machining, as well as EDM and precision grinding where fast, repeatable zero-point changeover matters. The JY100 platform suits both prototype and batch production that demands tight, repeatable clamping.
JIYAN controls the full production chain — raw material, machining, heat treatment, grinding, and QC — so every JY100-60R2 ships with verified accuracy and is backed by responsive technical support for overseas buyers.
