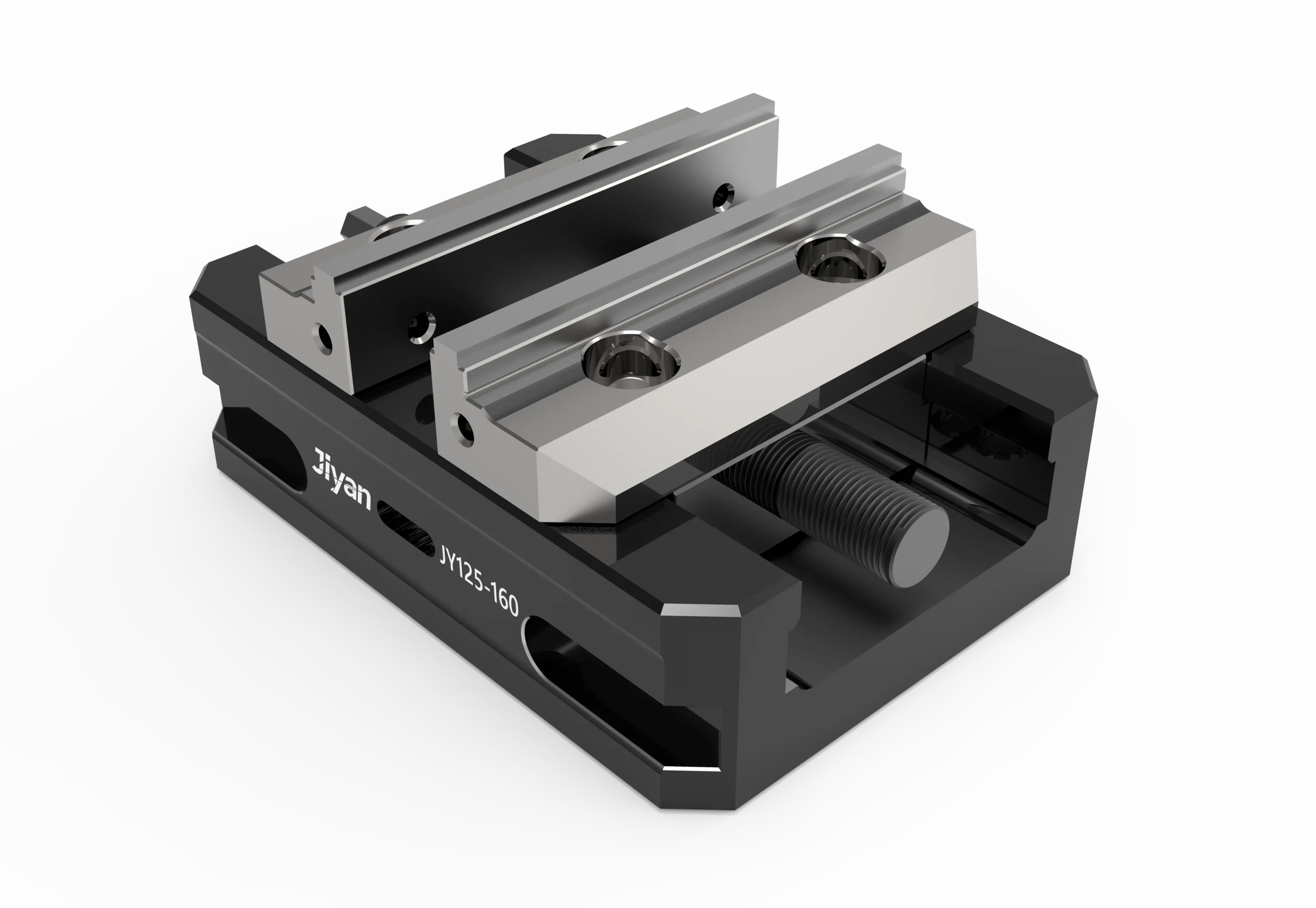

A heavy‑duty JIYAN self‑centering vise (175×125×78 mm) with 160 mm max clamping range, 0.01mm repeatability, 150Nm torque, and dual pull stud compatibility (52 / 96). Ideal for large CNC machining, zero point pallet systems, and heavy workpiece clamping from JIYANVISE.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | JY125‑160 |
| Type | Self‑centering vise, hard jaw |
| Dimensions (L × W × H) | 175 × 125 × 78 mm |
| Max. clamping range | 160 mm |
| Repeat clamping accuracy | 0.01mm |
| Max. torque | 150Nm |
| Weight | 7.8KG |
| Jaw type | Split type hardened steel jaws |
| Mounting options | 52 pull stud hole + 96 pull stud hole (dual compatibility) |
| Additional mounting | M9 countersunk holes × 4 |
JIYAN precision engineering – designed and manufactured to exacting standards
Self‑centering design – automatically centers the workpiece for consistent positioning
Wide clamping range – up to 160 mm capacity handles large workpieces
High precision – 0.01mm repeatability for tight tolerance machining
High torque capacity – 150Nm clamping torque for secure workholding
Split hardened jaws – durable, wear‑resistant, and replaceable
Dual pull stud compatibility – accepts both 52 pull studs and 96 pull studs for zero point mounting
Heavy‑duty construction – 7.8 kg weight ensures maximum rigidity
Robust mounting – M9 countersunk holes × 4 for secure fixture attachment
Large CNC milling and machining centers – handles oversized workpieces with stability
Automated pallet systems – dual pull stud options (52 / 96) enable quick change on zero point systems
Heavy cutting operations – 150Nm torque and rigid construction resist vibration in aggressive roughing
High‑mix / low‑volume production – quick jaw changes for different part sizes
4th/5th axis machining – heavy‑duty design for rotary table applications
Large part clamping – 160 mm capacity accommodates oversized workpieces
Precision machining – 0.01mm repeatability for consistent part quality
Self‑centering advantage – eliminates manual centering, reduces setup time
High precision – 0.01mm repeatability ensures consistent part quality
Zero point ready – 52 and 96 pull stud holes allow direct mounting on zero point pallets
Heavy‑duty capacity – 150Nm torque and 7.8 kg weight for large workpieces
Split jaw design – easy replacement and customization for different part geometries
Multiple mounting options – pull studs + M9 countersunk holes for secure fixture attachment
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for high‑cycle production
JIYANVISE reliability – trusted by CNC professionals worldwide
