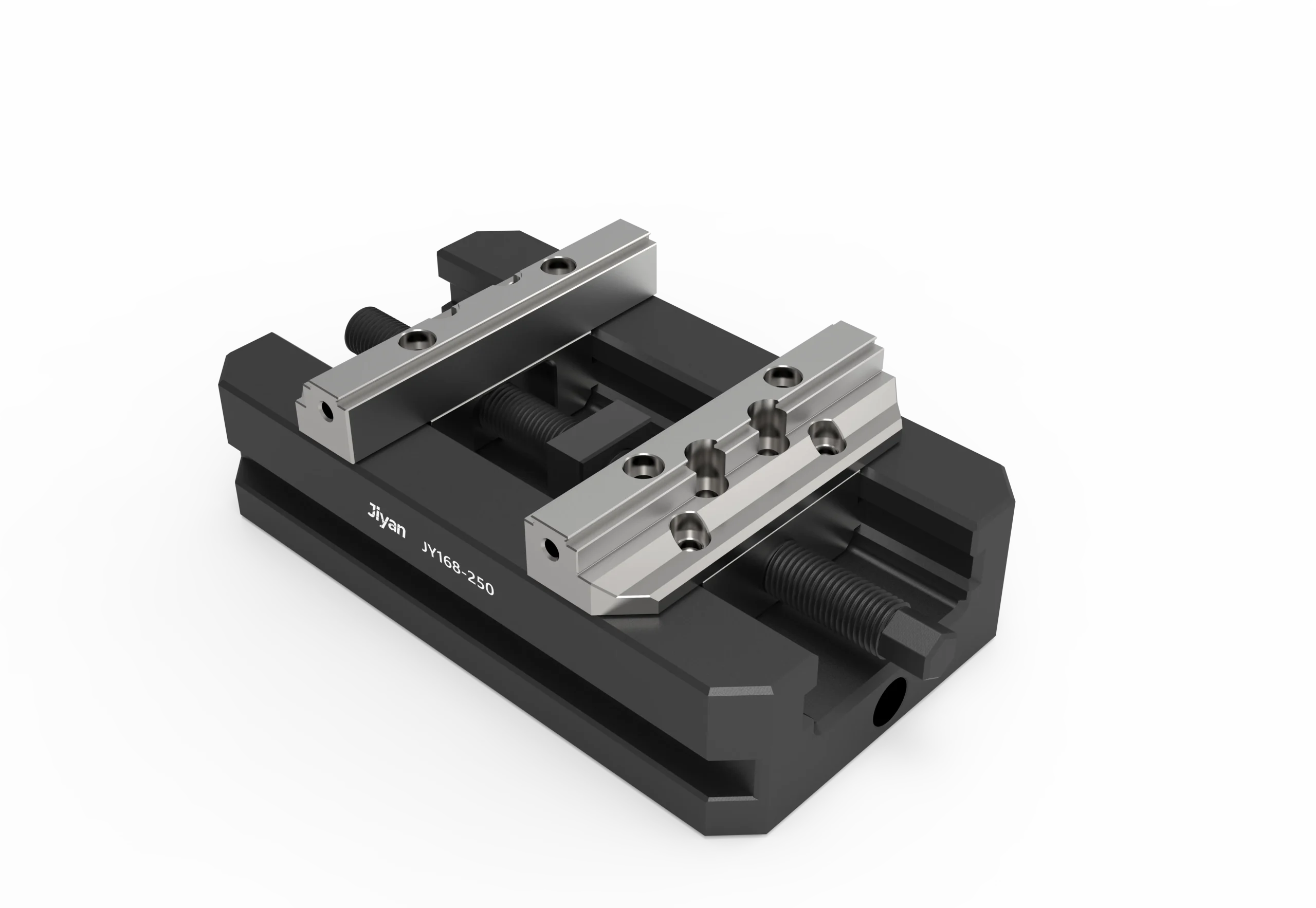

A heavy‑duty JIYAN self‑centering vise (292×168×99 mm) with 0–205 mm external / 45–250 mm internal clamping range, 0.01mm repeatability, 150Nm torque, and H18 zero point locating holes. Ideal for large CNC machining, zero point pallet systems, and oversized workpiece clamping from JIYANVISE.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | JY168‑250 |
| Type | Self‑centering vise, hard jaw |
| Dimensions (L × W × H) | 292 × 168 × 99 mm |
| Clamping range (external / internal) | 0–205 mm / 45–250 mm |
| Repeat clamping accuracy | 0.01mm |
| Max. torque | 150Nm |
| Jaw type | Split type hardened steel jaws |
| Mounting options | H18 2‑in‑1 zero point locating holes |
JIYAN precision engineering – designed and manufactured to exacting standards
Self‑centering design – automatically centers the workpiece for consistent positioning
Dual clamping modes – supports both external clamping (0–205 mm) and internal clamping (45–250 mm)
Extended clamping range – 250 mm internal capacity handles very large workpieces
High precision – 0.01mm repeatability for tight tolerance machining
High torque capacity – 150Nm clamping torque for secure workholding
Split hardened jaws – durable, wear‑resistant, and replaceable
Zero point ready – H18 2‑in‑1 locating holes for direct mounting on H18 zero point pallet systems
Heavy‑duty construction – 292×168×99 mm robust design for maximum rigidity
Large CNC milling and machining centers – handles oversized workpieces with stability
Automated pallet systems – H18 zero point compatibility enables quick change on pallet systems
Heavy cutting operations – 150Nm torque and rigid construction resist vibration in aggressive roughing
High‑mix / low‑volume production – quick jaw changes for different part sizes
4th/5th axis machining – heavy‑duty design for rotary table applications
Large part clamping – 250 mm internal capacity accommodates oversized workpieces
Precision machining – 0.01mm repeatability for consistent part quality
Self‑centering advantage – eliminates manual centering, reduces setup time
Dual clamping flexibility – one vise handles both external and internal workpieces
Extended clamping range – 250 mm internal capacity for very large parts
High precision – 0.01mm repeatability ensures consistent part quality
Zero point ready – H18 locating holes allow direct mounting on zero point pallets
Split jaw design – easy replacement and customization for different part geometries
Heavy‑duty construction – robust design for large workpiece clamping
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for high‑cycle production
JIYANVISE reliability – trusted by CNC professionals worldwide
