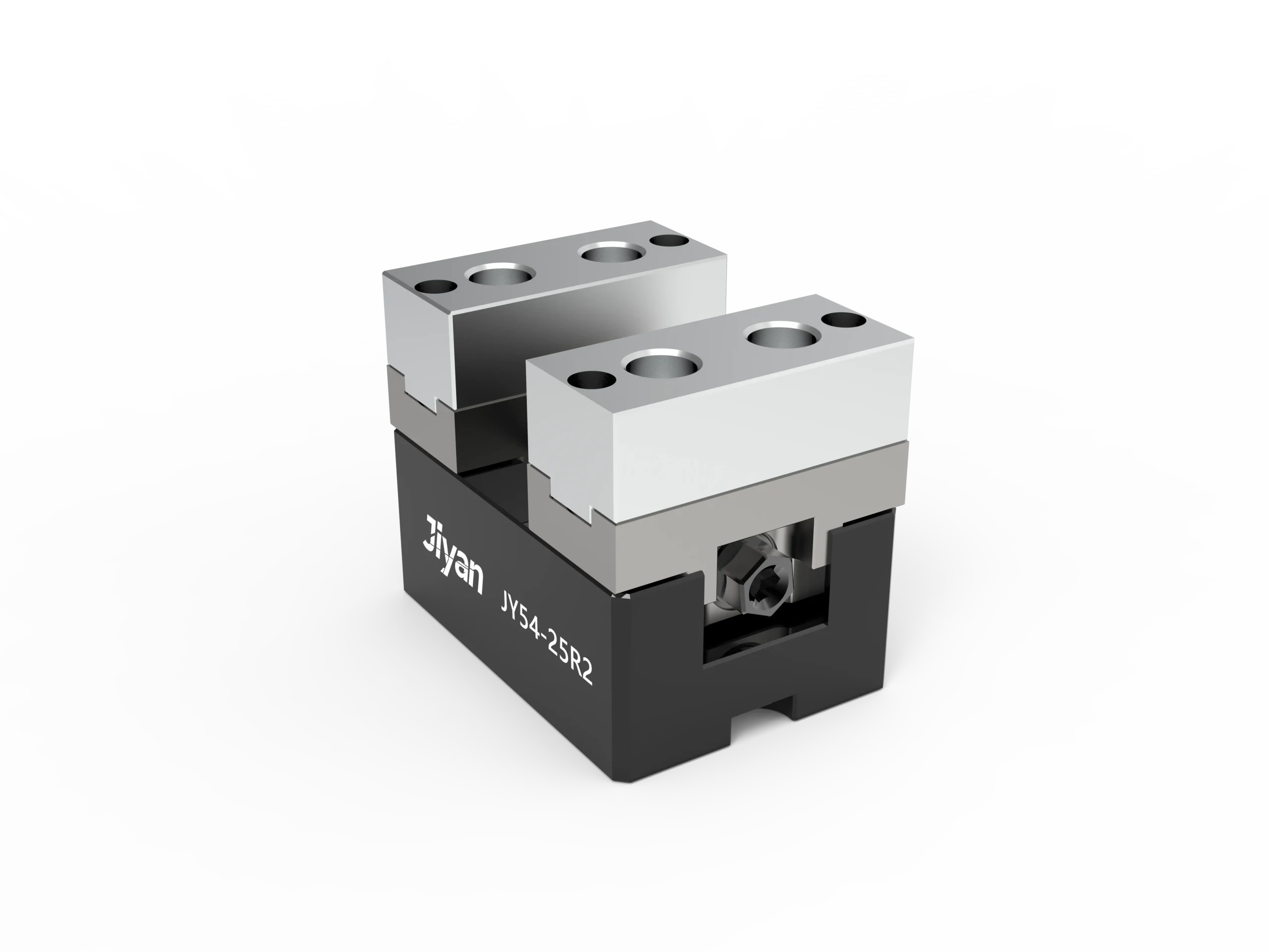

An ultra‑compact JIYAN self‑centering vise (75×53×61 mm) with combo jaw design – soft jaw + aluminum profile jaw in one unit, 0.015mm repeatability, and direct EROWA / 3R pallet system compatibility. Ideal for small CNC machining, EDM, and lightweight precision workholding from JIYANVISE.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | JY54‑25R2 |
| Type | Self‑centering vise, combo jaw (soft jaw + aluminum profile jaw) |
| Dimensions (L × W × H) | 75 × 53 × 61 mm |
| Repeat clamping accuracy | 0.015mm |
| Max. torque | 40Nm |
| Weight | 1.2 KG |
| Jaw type | Integral type combo jaws (soft jaw + aluminum profile jaw) |
| Mounting options | Direct EROWA and 3R pallet system compatibility |
JIYAN precision engineering – designed and manufactured to exacting standards
Self‑centering design – automatically centers the workpiece for consistent positioning
Combo jaw design – combines soft jaw flexibility with aluminum profile jaw for lightweight clamping
High repeatability – 0.015mm for reliable production accuracy
Integral hardened base – one‑piece jaw construction for maximum rigidity and durability
Aluminum profile jaw – lightweight and ideal for delicate or non‑marring clamping
EROWA & 3R ready – direct mounting on EROWA and 3R pallet systems without adapters
High torque capacity – 40Nm clamping torque for secure workholding
Ultra‑compact and lightweight – 75×53 mm footprint and 1.2 kg weight save machine space
Versatile workholding – soft jaw side for custom machining, aluminum jaw side for lightweight clamping
Small CNC milling and drilling – ideal for small precision parts requiring centered clamping
EROWA / 3R pallet systems – direct compatibility for quick change on standard pallet systems
EDM and precision grinding – compact size fits small machine envelopes
Mixed production runs – one vise handles both soft jaw and aluminum jaw applications
High‑mix / low‑volume production – quick changeover between different part types
4th/5th axis machining – ultra‑compact size fits tight rotary table envelopes
Delicate and finished surface clamping – aluminum jaw protects workpiece surfaces from damage
Lightweight workholding – aluminum jaw reduces clamping mass for high‑speed machining
Self‑centering advantage – eliminates manual centering, reduces setup time
Combo jaw versatility – soft jaw + aluminum jaw in one unit for maximum flexibility
Soft jaw option – machine soft jaws to exact part geometry for optimal grip
Aluminum jaw advantage – lightweight and non‑marring for delicate workpieces
EROWA & 3R ready – direct mounting on standard pallet systems, no adapters needed
Integral jaw construction – one‑piece hardened base provides maximum rigidity
Ultra‑compact footprint – saves valuable machine table space
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for high‑cycle production
JIYANVISE reliability – trusted by CNC professionals worldwide
