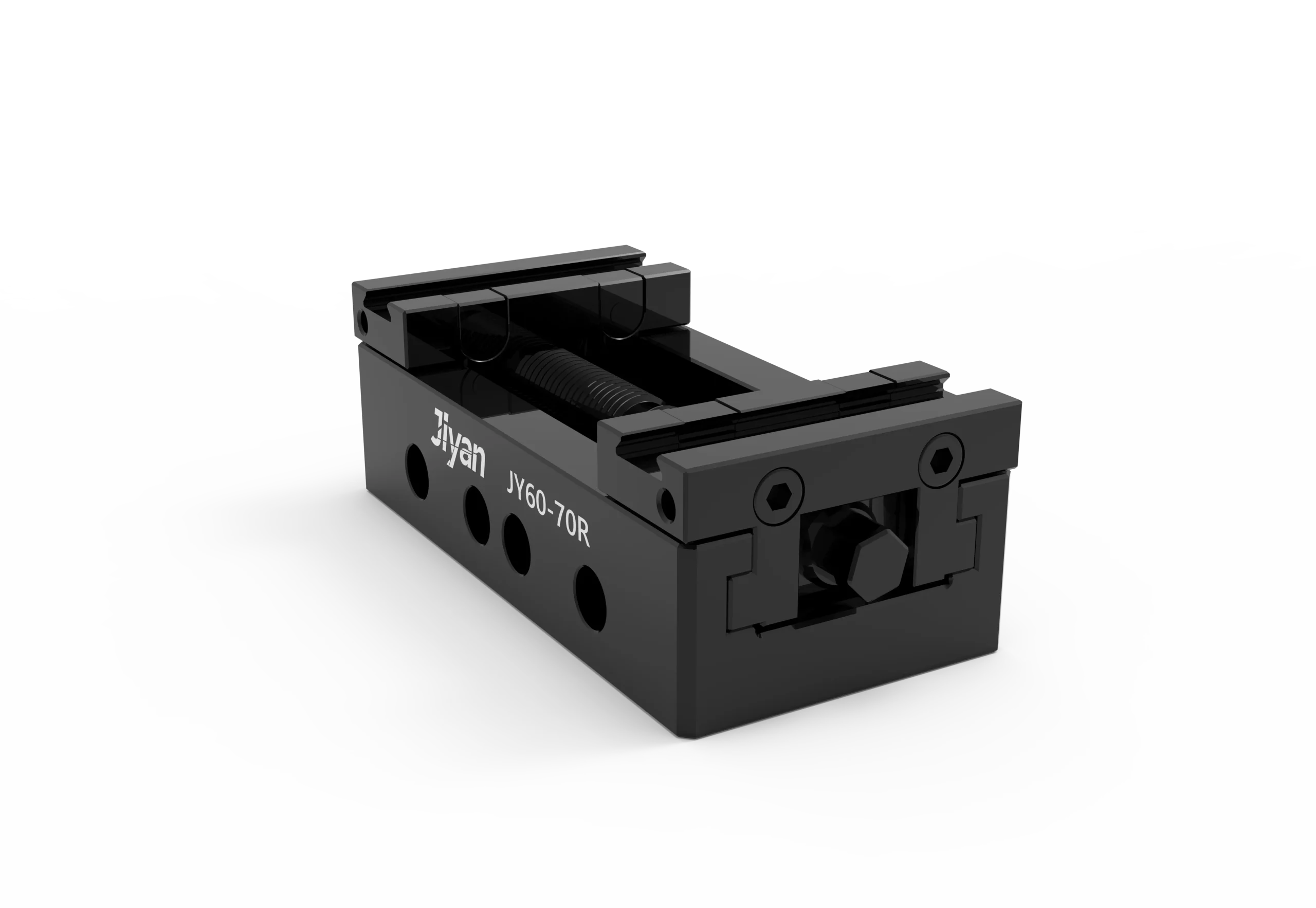

JIYAN JY60-70R self-centering CNC vise – soft jaw (120 mm body), 120×60×42 mm, 0.015 mm repeatability, 40 N·m clamping torque. Accepts EROWA & 3R locating inserts.
We typically respond within 24 hours.
The JIYAN JY60-70R is a compact self-centering CNC vise engineered for repeatable, high-precision workholding on milling, drilling, and 5-axis machining centers. With an integrated hard-jaw body and 0.015 mm repeatability across the full clamping range, it delivers consistent on-center clamping that shortens setup time and protects tight tolerances.
| Model | JY60-70R |
|---|---|
| Series | JIYAN JY60 self-centering vise |
| Dimensions (L×W×H) | 120×60×42 mm |
| Clamping Range | 0–70 mm |
| Repeatability | 0.015 mm |
| Max. Clamping Torque | 40 N·m |
| Weight | 3.6 kg |
| Jaw Type | Integral hard jaw (soft jaw) |
| Base / Locating | Accepts EROWA & 3R locating inserts |
Ideal for CNC milling, drilling, tapping, and 5-axis simultaneous machining, as well as EDM and precision grinding where fast, repeatable zero-point changeover matters. The JY60 platform suits both prototype and batch production that demands tight, repeatable clamping.
JIYAN controls the full production chain — raw material, machining, heat treatment, grinding, and QC — so every JY60-70R ships with verified accuracy and is backed by responsive technical support for overseas buyers.
