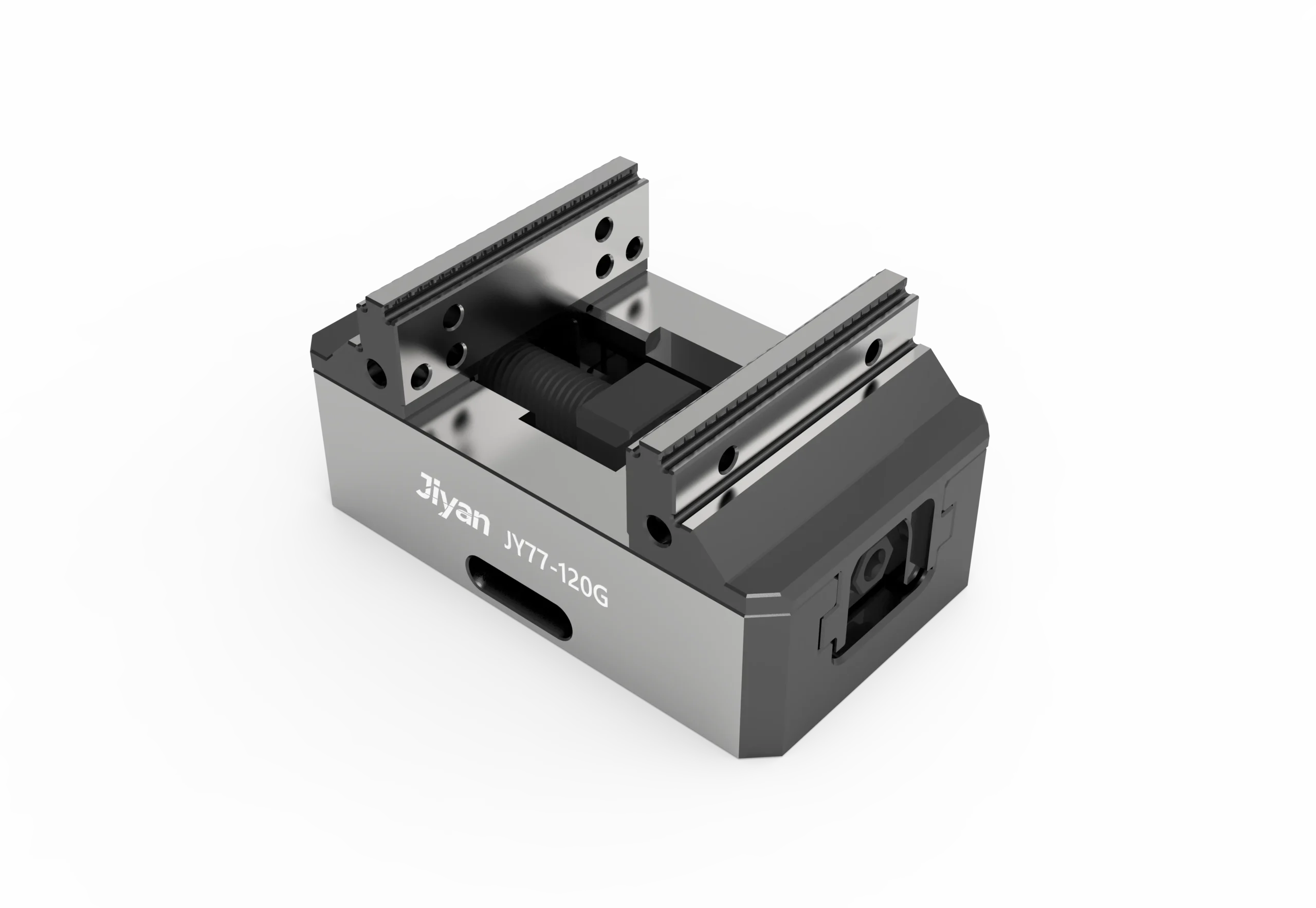

JY77‑120G Pneumatic Self‑Centering Vise (High Jaw)
A compact self‑centering vise with high jaw design (130×77×65 mm), 0–66 mm external / 46–113 mm internal clamping range, ±0.015 mm repeatability, and Ø52 pull stud compatibility. Ideal for CNC milling, zero point pallet systems, and tall or larger workpiece clamping.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | JY77‑120G |
| Type | Self‑centering vise, high jaw |
| Dimensions (L × W × H) | 130 × 77 × 65 mm (5.12″ × 3.03″ × 2.56″) |
| Clamping range (external / internal) | 0–66 mm / 46–113 mm (0–2.60″ / 1.81–4.45″) |
| Repeat clamping accuracy | ±0.015 mm (±0.0006″) |
| Max. torque | 70 Nm (51.6 ft‑lbs) |
| Weight | 2.8 kg (6.2 lbs) |
| Jaw type | Integral type hardened steel jaws (one‑piece) |
| Mounting option | Ø52 pull stud hole |
| Key dimensions | 130 mm (length), 87 mm (jaw width), 52 mm, 24 mm (see drawing) |
Self‑centering design – automatically centers the workpiece for consistent positioning
Dual clamping modes – supports both external clamping (0–66 mm) and internal clamping (46–113 mm)
High jaw design – 65 mm overall height provides deeper workpiece engagement
Wide clamping range – 113 mm internal capacity handles larger workpieces
High repeatability – ±0.015 mm (0.0006″) for reliable production accuracy
Integral hardened jaws – one‑piece jaw construction for maximum rigidity and durability
Zero point ready – Ø52 pull stud hole for direct mounting on zero point pallet systems
High torque capacity – 70 Nm clamping torque for secure workholding
Compact and lightweight – 130×77 mm footprint and 2.8 kg weight save machine space
CNC milling and drilling – ideal for small to medium prismatic parts requiring centered clamping
Automated pallet systems – Ø52 pull stud enables quick change on zero point systems
Round and square workpiece clamping – external and internal modes handle diverse part shapes
High‑mix / low‑volume production – quick changeover between different part sizes
4th/5th axis machining – compact size fits tight rotary table envelopes
Tall workpiece clamping – high jaw design (65 mm) provides better grip on taller parts
Larger part clamping – 113 mm internal capacity accommodates oversized workpieces
Precision machining – ±0.015 mm repeatability for consistent part quality
Self‑centering advantage – eliminates manual centering, reduces setup time
Dual clamping flexibility – one vise handles both external and internal workpieces
High jaw design – deeper jaw engagement for taller or irregular workpieces
Integral jaw construction – one‑piece hardened jaws provide maximum rigidity
Zero point ready – Ø52 pull stud hole allows direct mounting on zero point pallets
Extended clamping range – 113 mm internal capacity for larger parts
Compact footprint – saves valuable machine table space
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for high‑cycle production
