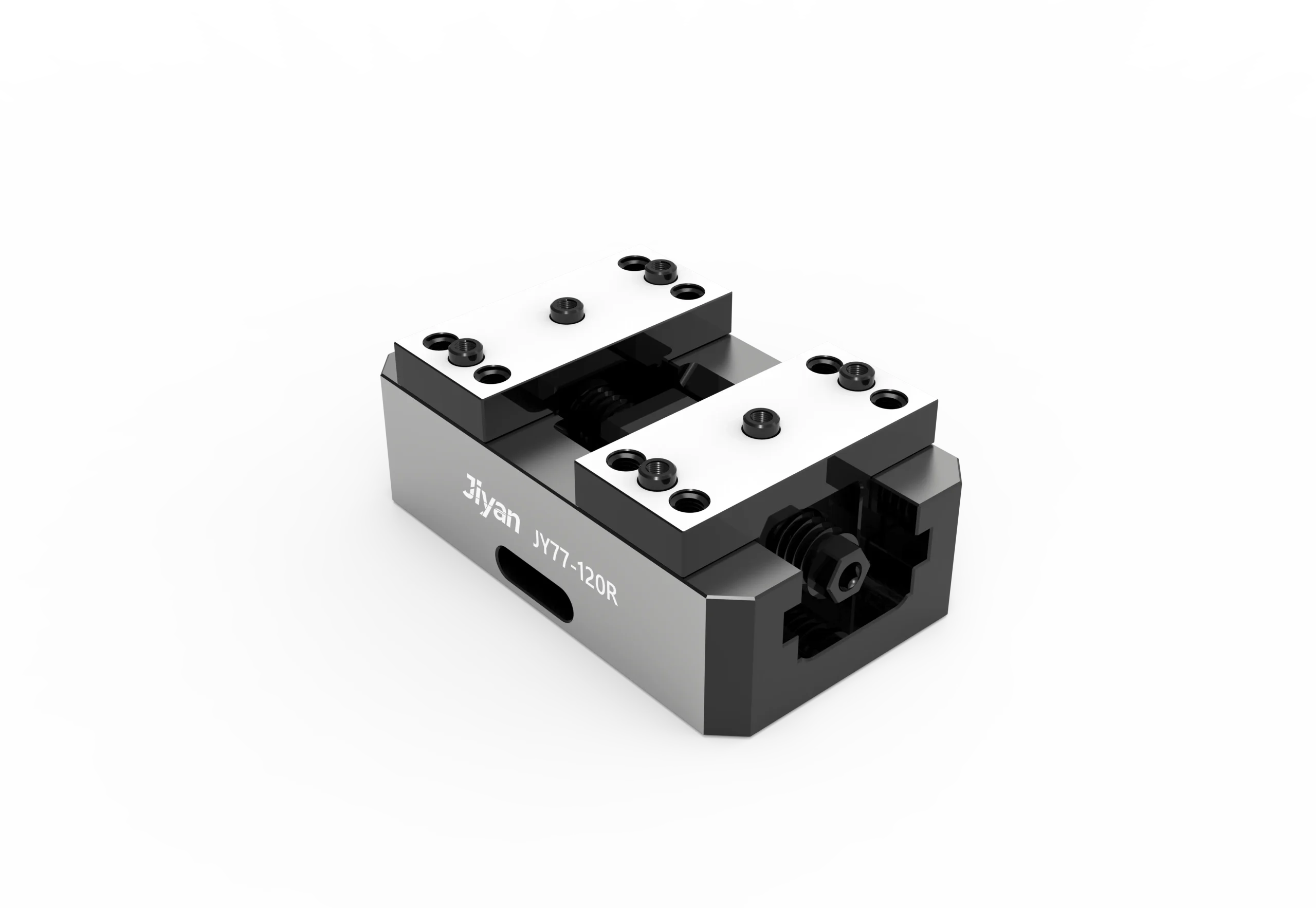

JY77‑120R JIYAN Pneumatic Self‑Centering Vise (Soft Jaw)
A low‑profile JIYAN self‑centering vise (130×77×53 mm) with split soft jaw design, 0.015mm repeatability, and 52 pull stud compatibility. Ideal for CNC milling, zero point pallet systems, and custom workpiece clamping requiring machinable soft jaws from JIYANVISE.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | JY77‑120R |
| Type | Self‑centering vise, soft jaw (split jaw) |
| Dimensions (L × W × H) | 130 × 77 × 53 mm |
| Repeat clamping accuracy | 0.015mm |
| Max. torque | 70Nm |
| Weight | 2.8KG |
| Jaw type | Split type soft jaws (sliding jaw blocks) |
| Mounting option | 52 pull stud hole |
JIYAN precision engineering – designed and manufactured to exacting standards
Self‑centering design – automatically centers the workpiece for consistent positioning
Soft jaw design – split type soft jaws allow custom machining for specific part geometries
Low profile – only 53 mm height saves Z‑axis clearance on CNC machines
High repeatability – 0.015mm for reliable production accuracy
Zero point ready – 52 pull stud hole for direct mounting on zero point pallet systems
High torque capacity – 70Nm clamping torque for secure workholding
Compact and lightweight – 130×77 mm footprint and 2.8 kg weight save machine space
Machinable jaws – soft jaws can be milled to match custom workpiece profiles
CNC milling and drilling – ideal for prismatic parts requiring centered clamping
Automated pallet systems – 52 pull stud enables quick change on zero point systems
Custom workpiece clamping – soft jaws can be machined to fit complex or delicate parts
High‑mix / low‑volume production – quick jaw changes for different part sizes
4th/5th axis machining – compact size fits tight rotary table envelopes
Delicate or finished surface clamping – soft jaws protect workpiece surfaces from damage
Precision machining – 0.015mm repeatability for consistent part quality
Low clearance applications – 53 mm profile fits machines with limited Z‑axis travel
Self‑centering advantage – eliminates manual centering, reduces setup time
Soft jaw flexibility – machine jaws to exact part geometry for optimal grip
Zero point ready – 52 pull stud hole allows direct mounting on zero point pallets
Low profile design – saves valuable Z‑axis clearance on CNC machines
Compact footprint – saves valuable machine table space
Split jaw design – easy replacement and customization
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for high‑cycle production
JIYANVISE reliability – trusted by CNC professionals worldwide
