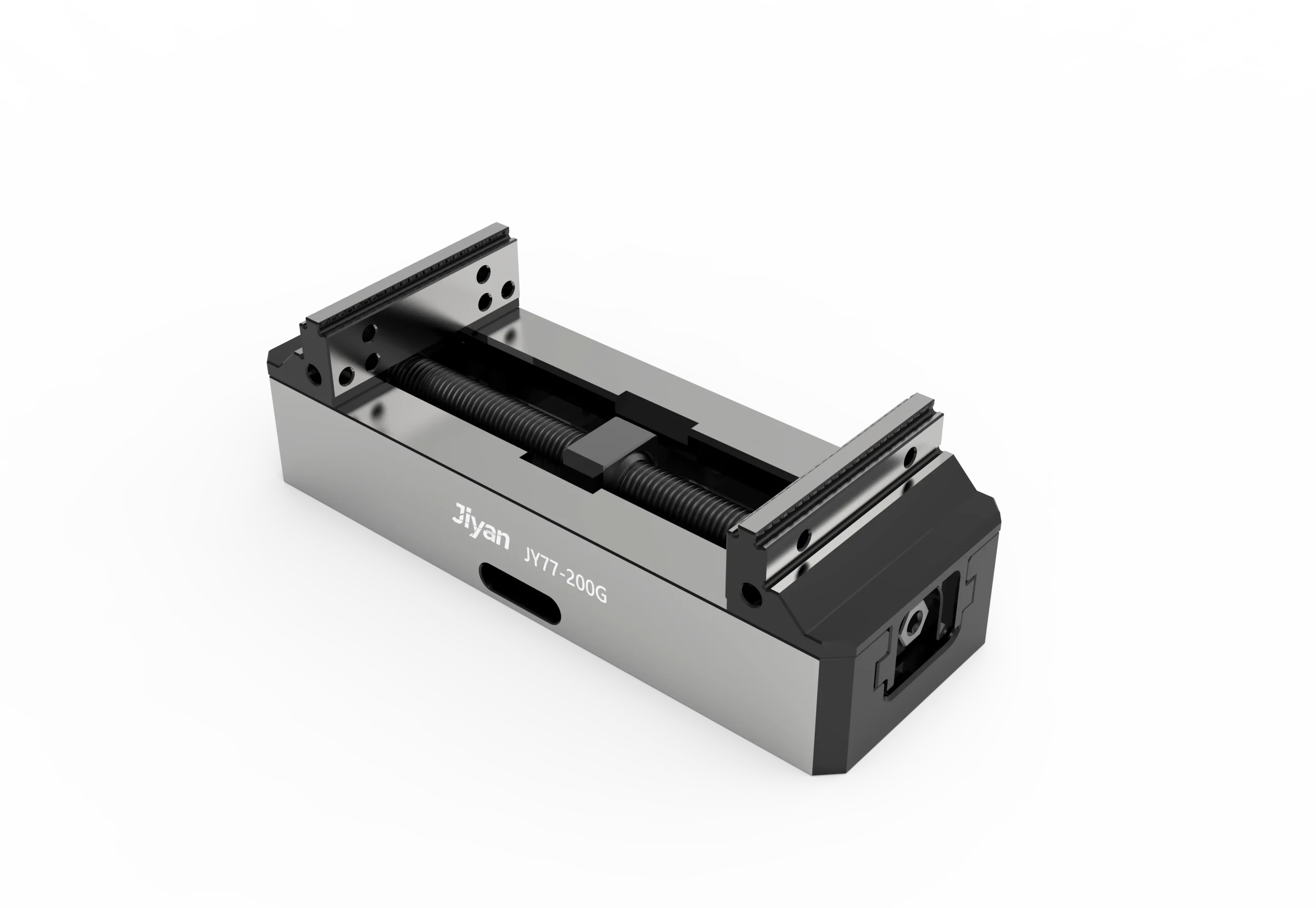

JY77‑200G JIYAN Pneumatic Self‑Centering Vise (High Jaw)
A JIYAN self‑centering vise with high jaw design (210×77×65 mm), 0–106 mm external / 46–193 mm internal clamping range, 0.015mm repeatability, and 52 pull stud compatibility. Ideal for CNC milling, zero point pallet systems, and large workpiece clamping from JIYANVISE.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | JY77‑200G |
| Type | Self‑centering vise, high jaw |
| Dimensions (L × W × H) | 210 × 77 × 65 mm |
| Clamping range (external / internal) | 0–106 mm / 46–193 mm |
| Repeat clamping accuracy | 0.015mm |
| Max. torque | 70Nm |
| Weight | 4.1KG |
| Jaw type | Integral type hardened steel jaws (one‑piece) |
| Mounting option | 52 pull stud hole |
| Additional mounting | M8 T‑slot × 4 positions |
JIYAN precision engineering – designed and manufactured to exacting standards
Self‑centering design – automatically centers the workpiece for consistent positioning
Dual clamping modes – supports both external clamping (0–106 mm) and internal clamping (46–193 mm)
High jaw design – 65 mm overall height provides deeper workpiece engagement
Extended clamping range – 193 mm internal capacity handles large workpieces
High repeatability – 0.015mm for reliable production accuracy
Integral hardened jaws – one‑piece jaw construction for maximum rigidity and durability
Zero point ready – 52 pull stud hole for direct mounting on zero point pallet systems
High torque capacity – 70Nm clamping torque for secure workholding
Flexible mounting – M8 T‑slot × 4 positions for additional fixture securing
Precision locating – dowel pin holes for accurate fixture registration
CNC milling and drilling – ideal for large prismatic parts requiring centered clamping
Automated pallet systems – 52 pull stud enables quick change on zero point systems
Round and square workpiece clamping – external and internal modes handle diverse part shapes
High‑mix / low‑volume production – quick changeover between different part sizes
4th/5th axis machining – compact width fits tight rotary table envelopes
Tall workpiece clamping – high jaw design (65 mm) provides better grip on taller parts
Large part clamping – 193 mm internal capacity accommodates oversized workpieces
Precision machining – 0.015mm repeatability for consistent part quality
Self‑centering advantage – eliminates manual centering, reduces setup time
Dual clamping flexibility – one vise handles both external and internal workpieces
High jaw design – deeper jaw engagement for taller or irregular workpieces
Integral jaw construction – one‑piece hardened jaws provide maximum rigidity
Zero point ready – 52 pull stud hole allows direct mounting on zero point pallets
Extended clamping range – 193 mm internal capacity for large parts
Multiple mounting options – 52 pull stud + M8 T‑slot for secure fixture attachment
Precision ground surfaces – verified for flatness and parallelism
Dowel pin locating – ensures accurate and repeatable fixture positioning
Hardened steel body – durable construction for high‑cycle production
JIYANVISE reliability – trusted by CNC professionals worldwide
