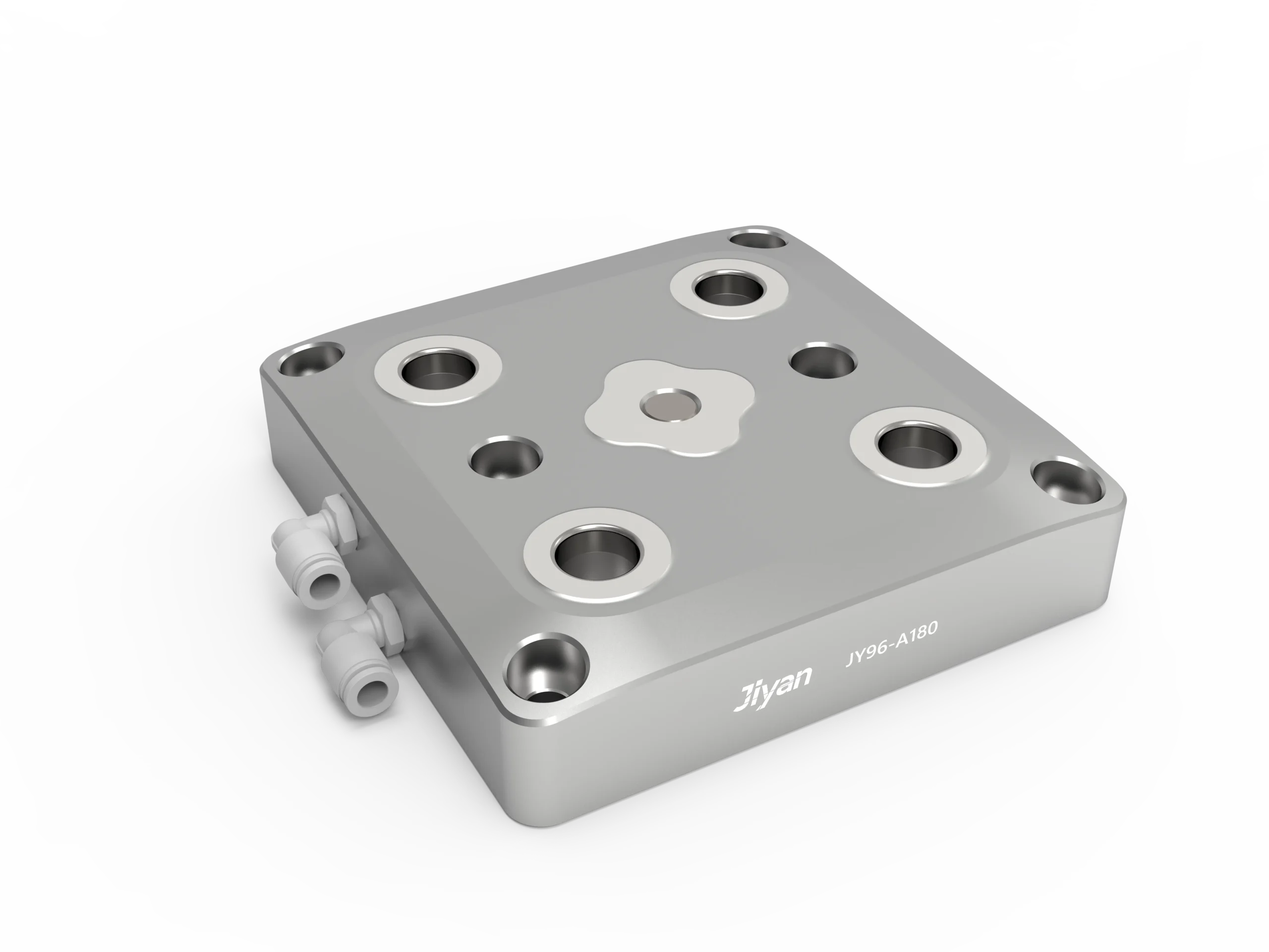

JY96-A180 JIYAN 96mm Square Pneumatic Zero-Point Pallet

The JY96-A180 is a JIYAN 96 mm zero-point quick-change pallet, built for CNC machining centres, 4th/5th-axis setups and automated production lines that need repeatable, seconds-fast workpiece changes. It locates and clamps through the JYAN 96 mm zero-point interface with a documented repeatability of 0.008 mm, eliminating re-indication between stations and slashing changeover time.

Key Features

• 0.008 mm repeatability across every clamp/unclamp cycle for true drop-in accuracy.
• Quick-change via the 96 mm zero-point pull-stud interface — swap a pallet or fixture in seconds, no re-alignment.
• Hardened steel locating elements seated in an aluminium body for rigidity without excess mass.
• Works with self-centering vises, 3-jaw chucks and ER-collet fixtures that carry a 96 mm stud pattern.
• Pneumatic actuation at 0.6 MPa with a 360 kg boosted pull force.
• Air-tight leak detection and automatic port cleaning on every cycle.

Technical Specifications

Applications

• CNC machining centres running mixed, high-mix / low-volume batches.
• 4th/5th-axis and tombstone workholding needing fast re-seating.
• Automated cells and robotic loading where changeover speed drives throughput.
• Any fixture that already carries a 52 mm or 96 mm zero-point stud pattern.

Why Choose JIYAN

JIYAN designs and manufactures its zero-point system in-house — machining, heat treatment, grinding and inspection all happen under one roof. That vertical integration is why every pallet and block holds the same 0.008 mm repeatability batch after batch, and why we can supply complete kits (pallet + pull studs) ready to bolt down and run.
