Specifications
| Parameter | Value |
|---|---|

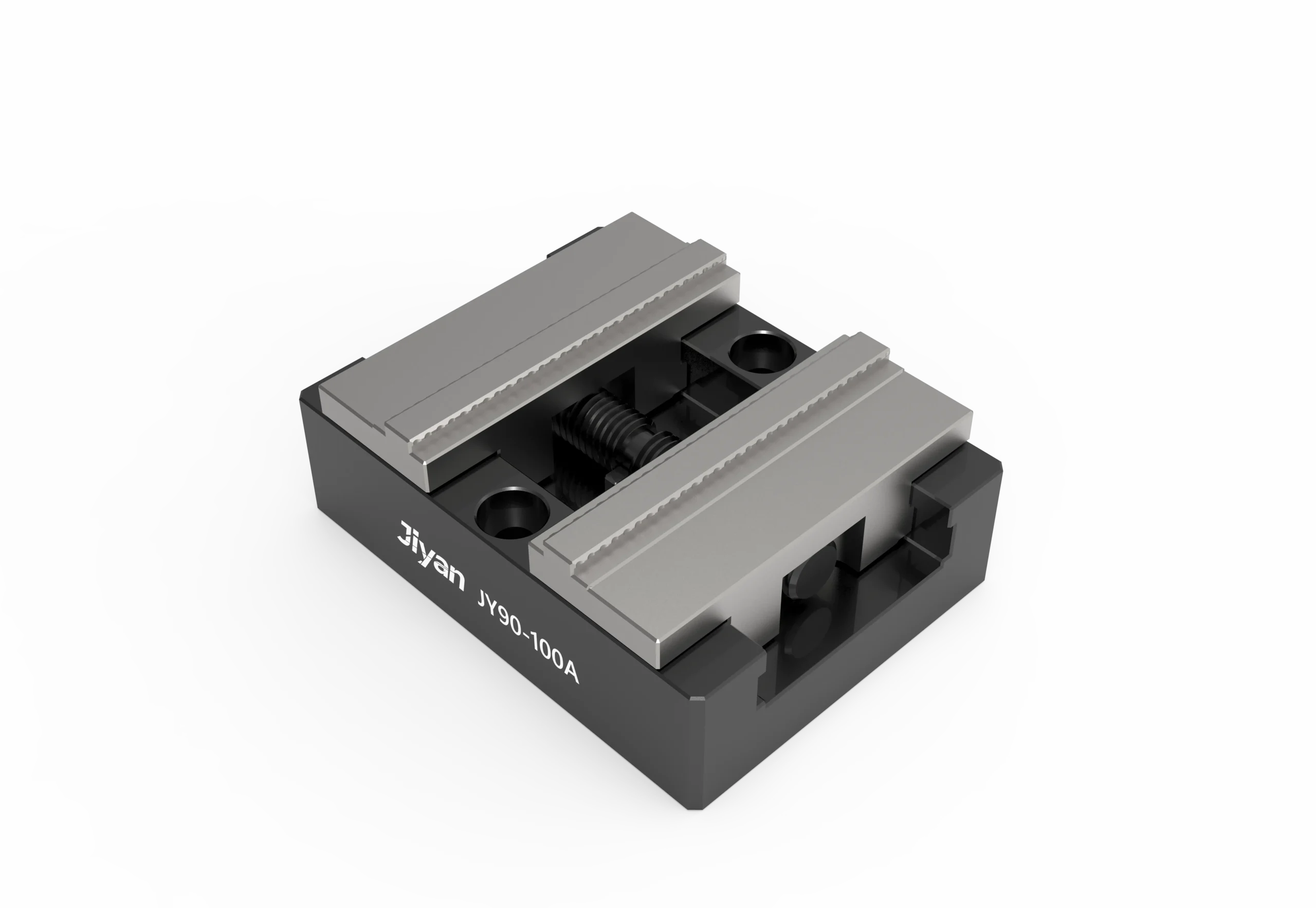

| Model | JY90‑100A |
| Type | Self‑centering vise, low jaw |
| Dimensions (L × W × H) | 120 × 90 × 44 mm |
| Clamping range (external / internal) | 0–58 mm / 36–94 mm |
| Repeat clamping accuracy | 0.015mm |
| Max. torque | 70Nm |
| Weight | 2.8KG |
| Jaw type | Integral type hardened steel jaws (low jaw) |
| Mounting options | 52 pull stud hole + H18 pull stud hole (dual compatibility) |
Key Features
-
JIYAN precision engineering – designed and manufactured to exacting standards
-
Self‑centering design – automatically centers the workpiece for consistent positioning
-
Dual clamping modes – supports both external clamping (0–58 mm) and internal clamping (36–94 mm)
-
Low profile design – only 44 mm height, preserves Z‑axis clearance for tall workpieces
-
High repeatability – 0.015mm for reliable production accuracy
-
Integral hardened jaws – one‑piece jaw construction for maximum rigidity and durability
-
Dual pull stud compatibility – accepts both 52 pull studs and H18 pull studs for zero point mounting
-
High torque capacity – 70Nm clamping torque for secure workholding
-
Compact and lightweight – 120×90 mm footprint and 2.8 kg weight save machine space
Application Scenarios
-
CNC milling and drilling – ideal for prismatic parts requiring centered clamping
-
Automated pallet systems – dual pull stud options (52 / H18) enable quick change on zero point systems
-
Round and square workpiece clamping – external and internal modes handle diverse part shapes
-
High‑mix / low‑volume production – quick jaw changes for different part sizes
-
4th/5th axis machining – low profile fits tight Z‑axis clearance applications
-
Low clearance applications – 44 mm profile fits machines with limited Z‑axis travel
-
Precision machining – 0.015mm repeatability for consistent part quality
Why Choose JIYAN
-
Self‑centering advantage – eliminates manual centering, reduces setup time
-
Dual clamping flexibility – one vise handles both external and internal workpieces
-
Low profile design – saves valuable Z‑axis clearance on CNC machines
-
Zero point ready – 52 and H18 pull stud holes allow direct mounting on zero point pallets
-
Integral jaw construction – one‑piece hardened jaws provide maximum rigidity
-
Precision ground surfaces – verified for flatness and parallelism
-
Compact footprint – saves valuable machine table space
-
Hardened steel body – durable construction for high‑cycle production
-
JIYANVISE reliability – trusted by CNC professionals worldwide
