Specifications

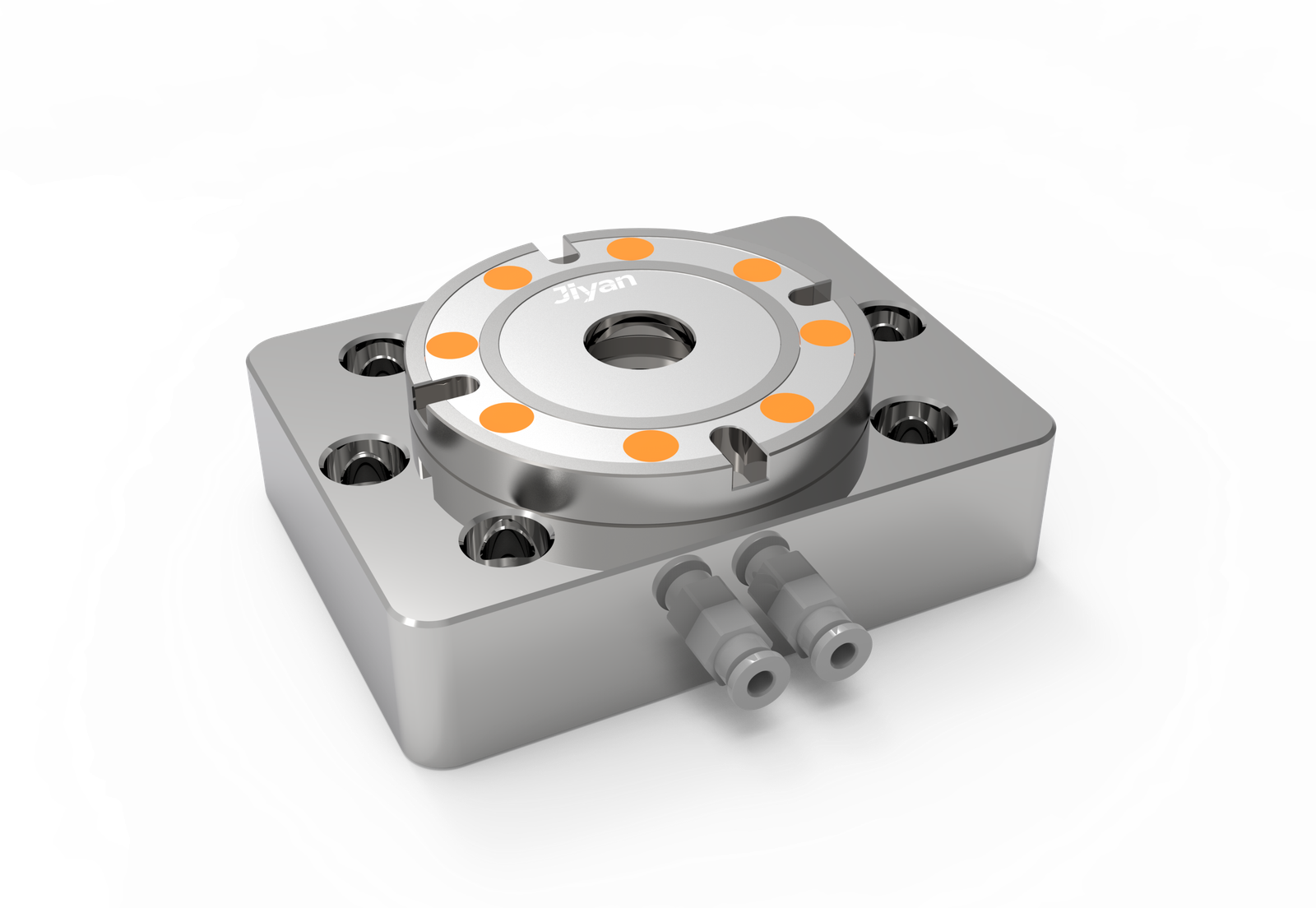

| Parameter | Value |
|---|---|
| Model | H18‑1F |
| Type | Single hole zero point clamp (square) |
| Dimensions (L×W×H) | 110 × 110 × 53 mm (4.33″ × 4.33″ × 2.09″) |
| Repeat positioning accuracy | ±0.005 mm (±0.0002″) |
| Max. operating pressure (air) | 1.2 MPa (174 psi) |
| Pull‑down force (at 0.6 MPa) | 55 kN (12,364 lbf) |
| Clamping force (at 0.6 MPa) | 17 kN (3,822 lbf) |
| Mounting holes | Refer to drawing (90, 88, 110, 13, 53 dimensions) |
| Actuation | Pneumatic (single port) |
Key Features
-
Single pneumatic port activation – simple on/off control for independent zero‑point clamping
-
High repeatability – ±0.005 mm (0.0002″) for fast and accurate pallet changes
-
Compact square footprint – 110×110 mm base, fits tightly on CNC tables, risers, or tombstones
-
Heavy clamping & pull‑down force – 55 kN pull‑down (12,364 lbf) / 17 kN clamping (3,822 lbf)
-
High max. air pressure – operates up to 1.2 MPa (174 psi), robust for automated setups
-
Corrosion‑resistant body – hardened steel with black oxide finish, suitable for wet machining
-
Simple 4‑bolt mounting – easy integration onto fixture plates or machine tables
Application Scenarios
-
High‑mix / low‑volume CNC machining – quick changeover between different pallets or parts
-
Automated production cells – robotic pallet changing with repeatable zero‑point locking
-
4‑axis & 5‑axis work – low‑profile design (53 mm height) leaves more Z‑axis clearance
-
Fixture plates on CNC mills & machining centers – mount multiple units for modular fixturing
-
EDM & grinding – clean pneumatic operation without hydraulic oil contamination
Why Choose JIYAN
-
Precision‑ground locating surfaces – each unit inspected for flatness and lock repeatability
-
Compact strength – high pull‑down force in a small square envelope
-
Customizable mounting plates – available upon request for non‑standard hole patterns
-
Pneumatic‑only operation – no hydraulic pump or power unit needed, reduces shop floor cost
-
Designed for U.S. machine tables – inch & metric mounting options supported with adapter plates
