Specifications
| Parameter | Value |
|---|---|

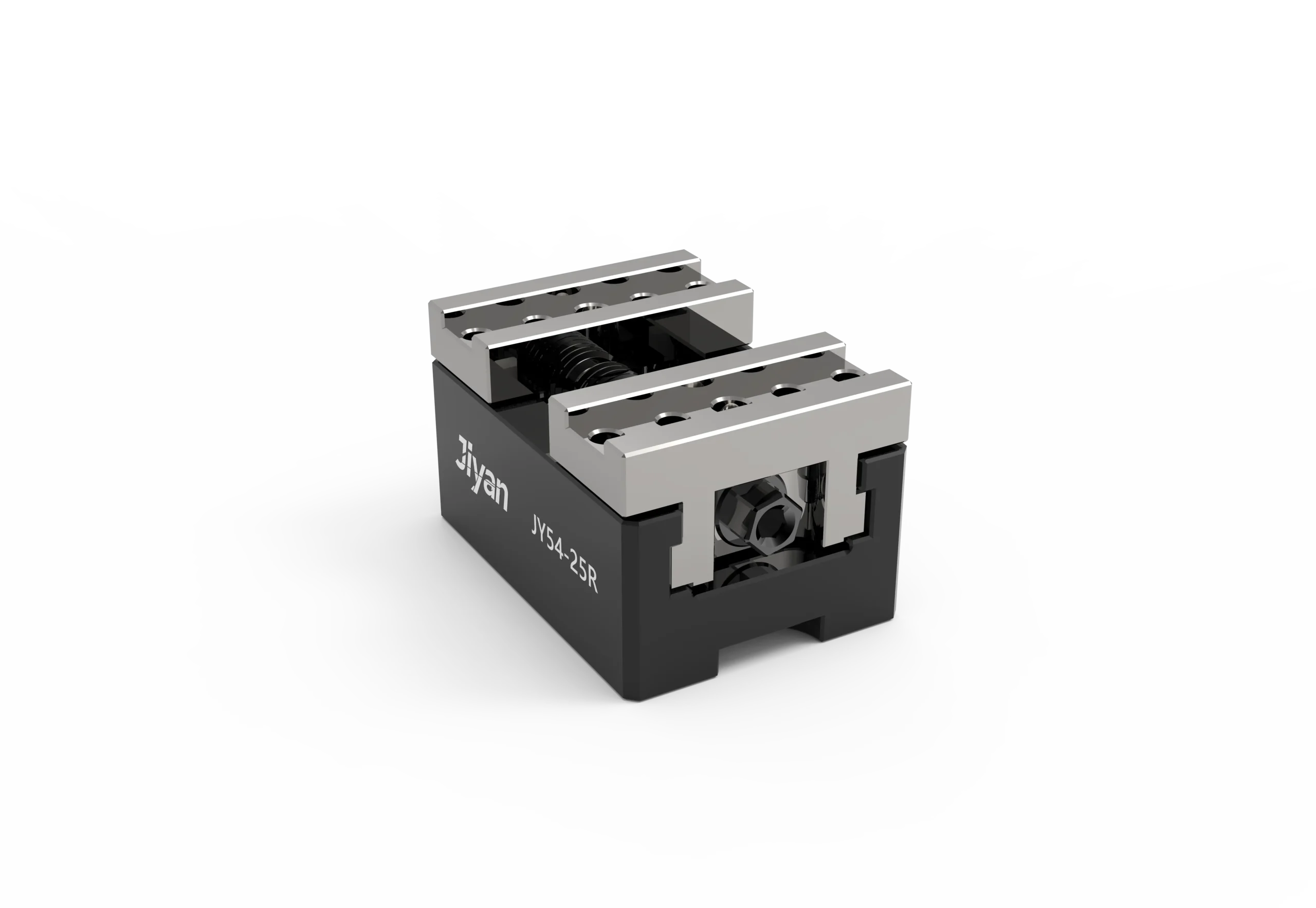

| Model | JY54‑25R |
| Type | Self‑centering vise, soft jaw |
| Dimensions (L × W × H) | 75 × 54 × 44 mm |
| Clamping range | 0–25 mm |
| Repeat clamping accuracy | 0.015mm |
| Max. torque | 40Nm |
| Weight | 1.1 KG |
| Jaw type | Integral type hardened steel jaws (soft jaw) |
| Mounting options | Direct EROWA and 3R pallet system compatibility |
Key Features
-
JIYAN precision engineering – designed and manufactured to exacting standards
-
Self‑centering design – automatically centers the workpiece for consistent positioning
-
Soft jaw design – allows custom machining for specific part geometries
-
Low profile – only 44 mm height saves Z‑axis clearance on CNC machines
-
High repeatability – 0.015mm for reliable production accuracy
-
Integral hardened jaws – one‑piece jaw construction for maximum rigidity and durability
-
EROWA & 3R ready – direct mounting on EROWA and 3R pallet systems without adapters
-
High torque capacity – 40Nm clamping torque for secure workholding
-
Ultra‑compact and lightweight – 75×54 mm footprint and 1.1 kg weight save machine space
-
Machinable jaws – soft jaws can be milled to match custom workpiece profiles
Application Scenarios
-
Small CNC milling and drilling – ideal for small precision parts requiring centered clamping
-
EROWA / 3R pallet systems – direct compatibility for quick change on standard pallet systems
-
EDM and precision grinding – compact size fits small machine envelopes
-
Custom workpiece clamping – soft jaws can be machined to fit complex or delicate parts
-
High‑mix / low‑volume production – quick jaw changes for different part sizes
-
4th/5th axis machining – ultra‑compact size fits tight rotary table envelopes
-
Delicate or finished surface clamping – soft jaws protect workpiece surfaces from damage
-
Low clearance applications – 44 mm profile fits machines with limited Z‑axis travel
Why Choose JIYAN
-
Self‑centering advantage – eliminates manual centering, reduces setup time
-
Soft jaw flexibility – machine jaws to exact part geometry for optimal grip
-
Low profile design – saves valuable Z‑axis clearance on CNC machines
-
EROWA & 3R ready – direct mounting on standard pallet systems, no adapters needed
-
Integral jaw construction – one‑piece hardened jaws provide maximum rigidity
-
Ultra‑compact footprint – saves valuable machine table space
-
Precision ground surfaces – verified for flatness and parallelism
-
Hardened steel body – durable construction for high‑cycle production
-
JIYANVISE reliability – trusted by CNC professionals worldwide
