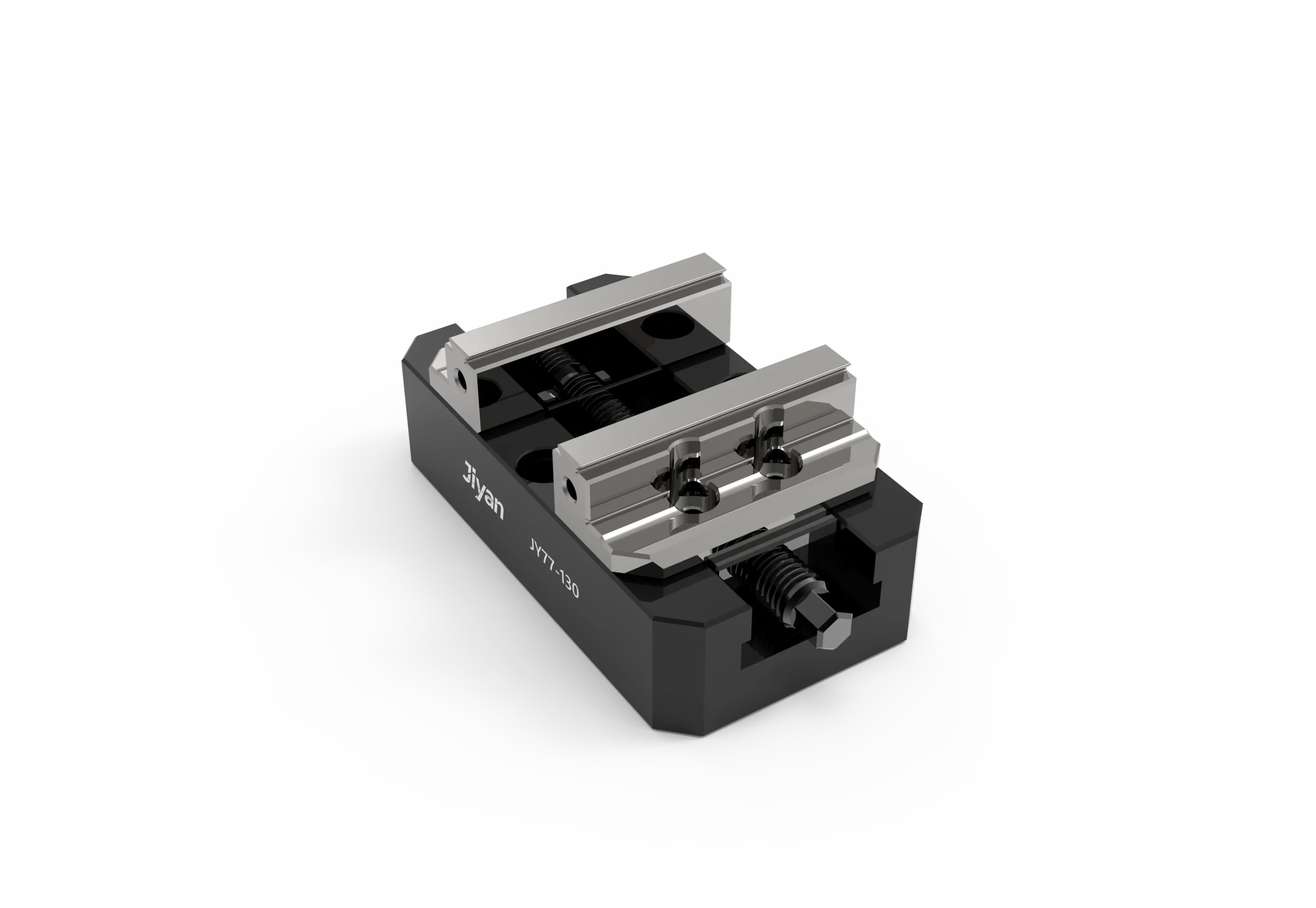

JY77‑130 JIYAN Pneumatic Self‑Centering Vise (High Jaw)
A JIYAN self‑centering vise with high jaw design (140×77×57.8 mm), 0–130 mm clamping range, 0.015mm repeatability, and 52 pull stud compatibility. Ideal for CNC milling, zero point pallet systems, and tall workpiece clamping from JIYANVISE.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | JY77‑130 |
| Type | Self‑centering vise, high jaw |
| Dimensions (L × W × H) | 140 × 77 × 57.8 mm |
| Clamping range | 0–130 mm |
| Repeat clamping accuracy | 0.015mm |
| Max. torque | 70Nm |
| Jaw type | Split type hardened steel jaws |
| Mounting option | 52 pull stud hole |
JIYAN precision engineering – designed and manufactured to exacting standards
Self‑centering design – automatically centers the workpiece for consistent positioning
Wide clamping range – 0–130 mm capacity handles a broad range of part sizes
High jaw design – 57.8 mm overall height provides deeper workpiece engagement
High repeatability – 0.015mm for reliable production accuracy
Split hardened jaws – durable, wear‑resistant, and replaceable
Zero point ready – 52 pull stud hole for direct mounting on zero point pallet systems
High torque capacity – 70Nm clamping torque for secure workholding
CNC milling and drilling – ideal for prismatic parts requiring centered clamping
Automated pallet systems – 52 pull stud enables quick change on zero point systems
Round and square workpiece clamping – handles diverse part shapes
High‑mix / low‑volume production – quick jaw changes for different part sizes
4th/5th axis machining – compact size fits tight rotary table envelopes
Tall workpiece clamping – high jaw design provides better grip on taller parts
Precision machining – 0.015mm repeatability for consistent part quality
Self‑centering advantage – eliminates manual centering, reduces setup time
Split jaw design – easy replacement and customization for different part geometries
Zero point ready – 52 pull stud hole allows direct mounting on zero point pallets
High jaw design – deeper jaw engagement for taller or irregular workpieces
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for high‑cycle production
JIYANVISE reliability – trusted by CNC professionals worldwide
