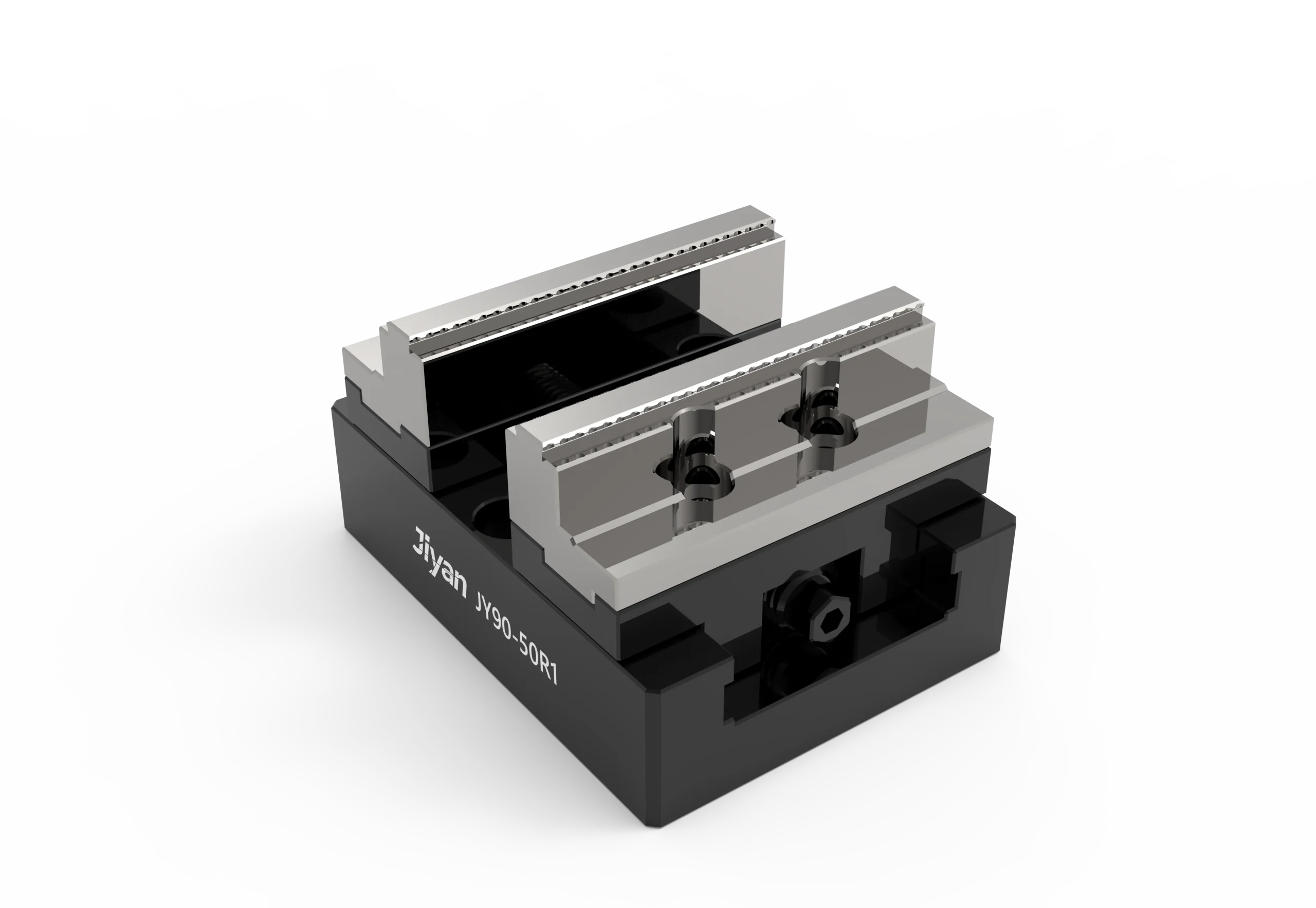

JY90-50R1 Pneumatic Self-Centering Vise (Soft+High Jaw)

Specifications

Key Features

• JIYAN precision engineering – designed and manufactured to exacting standards

• Self‑centering design – automatically centers the workpiece for consistent positioning

• Dual clamping modes – supports both external clamping (0–58 mm) and internal clamping (36–94 mm)

• Combo jaw design – combines soft jaw flexibility with high hard jaw rigidity in one vise

• High jaw height – 67 mm overall height provides deeper workpiece engagement

• High repeatability – 0.015mm for reliable production accuracy

• Dual pull stud compatibility – accepts both 52 pull studs and H18 pull studs for zero point mounting

• High torque capacity – 70Nm clamping torque for secure workholding

• Versatile workholding – soft jaw side for delicate parts, high hard jaw side for heavy‑duty clamping

Application Scenarios

• CNC milling and drilling – ideal for parts requiring both delicate and heavy clamping

• Automated pallet systems – dual pull stud options (52 / H18) enable quick change on zero point systems

• Mixed production runs – one vise handles both soft jaw and hard jaw applications

• High‑mix / low‑volume production – quick changeover between different part types

• 4th/5th axis machining – compact size fits tight rotary table envelopes

• Delicate and finished surface clamping – soft jaw side protects workpiece surfaces

• Tall and irregular workpiece clamping – high hard jaw side provides secure grip

• Precision machining – 0.015mm repeatability for consistent part quality

Why Choose JIYAN

• Self‑centering advantage – eliminates manual centering, reduces setup time

• Dual clamping flexibility – one vise handles both external and internal workpieces

• Combo jaw versatility – soft jaw + high hard jaw in one unit for maximum flexibility

• Zero point ready – 52 and H18 pull stud holes allow direct mounting on zero point pallets

• High jaw design – deeper jaw engagement for taller or irregular workpieces

• Soft jaw option – machine soft jaws to exact part geometry for optimal grip

• Precision ground surfaces – verified for flatness and parallelism

• Compact footprint – saves valuable machine table space

• Hardened steel body – durable construction for high‑cycle production

• JIYANVISE reliability – trusted by CNC professionals worldwide
