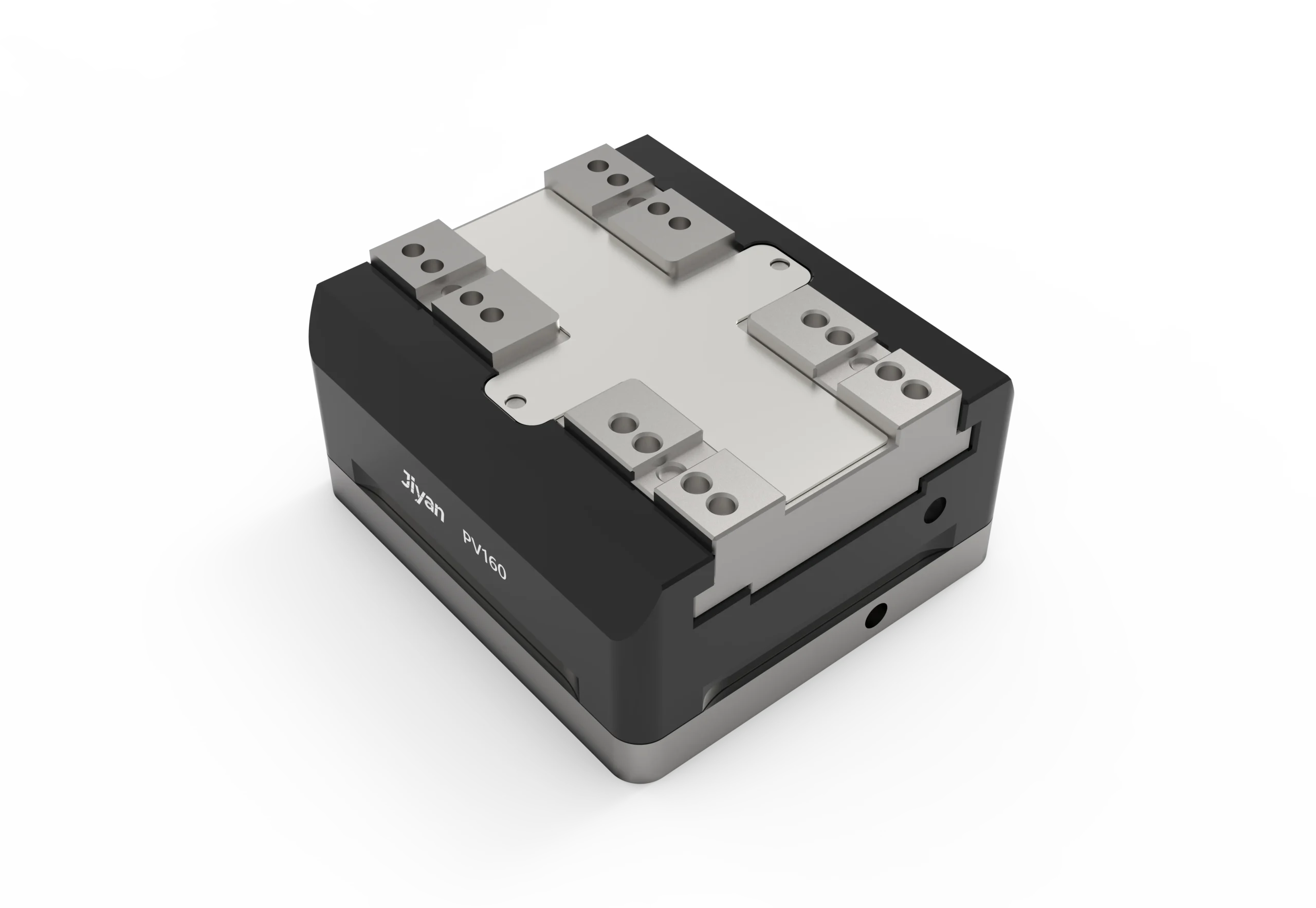

A compact JIYAN pneumatic/hydraulic vise (160×145×80 mm) with 5.0 mm stroke, 3.8 KN clamping force, 0.02mm repeatability, and 96 pull stud compatibility. Ideal for CNC machining, zero point pallet systems, and precision workholding from JIYANVISE.
We typically respond within 24 hours.
| Parameter | Value |
|---|---|
| Model | PV160 |
| Type | Pneumatic / hydraulic vise |
| Dimensions (L × W × H) | 160 × 145 × 80 mm |
| Max. stroke | 5.0 mm |
| Air inlet pressure | 0.7 MPa |
| Clamping force | 3.8 KN |
| Repeat clamping accuracy | 0.02mm |
| Weight | 12.0 KG |
| Jaw type | Customizable jaws |
| Mounting option | 96 pull stud hole |
JIYAN precision engineering – designed and manufactured to exacting standards
Pneumatic / hydraulic actuation – provides consistent and reliable clamping force
Compact design – 160×145×80 mm footprint saves machine table space
High repeatability – 0.02mm for reliable production accuracy
Customizable jaws – flexible jaw options for different workpiece geometries
Zero point ready – 96 pull stud hole for direct mounting on zero point pallet systems
Heavy‑duty construction – 12.0 kg weight ensures maximum rigidity
Short stroke design – 5.0 mm stroke provides fast clamping action
CNC milling and machining centers – ideal for high‑precision workholding
Automated pallet systems – 96 pull stud enables quick change on zero point systems
High‑volume production – pneumatic/hydraulic actuation enables automation integration
4th/5th axis machining – compact size fits tight rotary table envelopes
Precision machining – 0.02mm repeatability for consistent part quality
Custom workpiece clamping – customizable jaws for specific part geometries
Pneumatic/hydraulic advantage – consistent clamping force for reliable production
Zero point ready – 96 pull stud hole allows direct mounting on zero point pallets
Customizable jaws – flexible jaw options for different workpiece geometries
Compact footprint – saves valuable machine table space
Heavy‑duty construction – robust design for high‑cycle production
Precision ground surfaces – verified for flatness and parallelism
Hardened steel body – durable construction for long‑lasting performance
JIYANVISE reliability – trusted by CNC professionals worldwide
