Core Benefits – Quick & Clear
- Multi‑Axis Angle Adjustment
Vertical tilt: 0‑50° / Horizontal rotation: 360°. Position the workpiece at compound angles without multiple fixtures or re‑clamping – machine chamfers, undercuts, and inclined features in one setup.
- High Rigidity & Stable Clamping
High‑strength stainless steel, hardened to HRC 58°, minimizes vibration and ensures consistent machining accuracy even under demanding cutting conditions. Eliminates deflection.
- Precise Positioning – 0.01 mm Accuracy
Integrated angle scales and secure locking mechanism provide repeatable angular positioning with 0.01 mm linear accuracy. Ideal for high‑precision work.
- Compact & Interference‑Free
130 mm length, 23.5 mm jaw height – fits easily on 5‑axis trunnions, rotary tables, or tight machine work envelopes. Compact design enhances tool accessibility.
- Versatile Jaw Opening
Jaw opening 0‑70 mm, jaw width 50 mm – handles small blocks, round stock, and medium components. Suitable for both standard VMCs and advanced multi‑axis machining.
Key Use Cases
- Aerospace & Medical Prototyping – Machine complex brackets, implants, or housings with inclined holes and angled surfaces – one vise, multiple angles, one setup.
- Precision Engineering & Toolrooms – Quickly switch between vertical and horizontal workholding orientations without changing fixtures – ideal for R&D and small‑batch production.
- Multi‑Axis Machining Centers – Mount on a 5‑axis trunnion for even greater flexibility – the universal vise adds compound angle capability to any mill.
Unlock Multi‑Angle Precision – One Vise, Infinite Positions

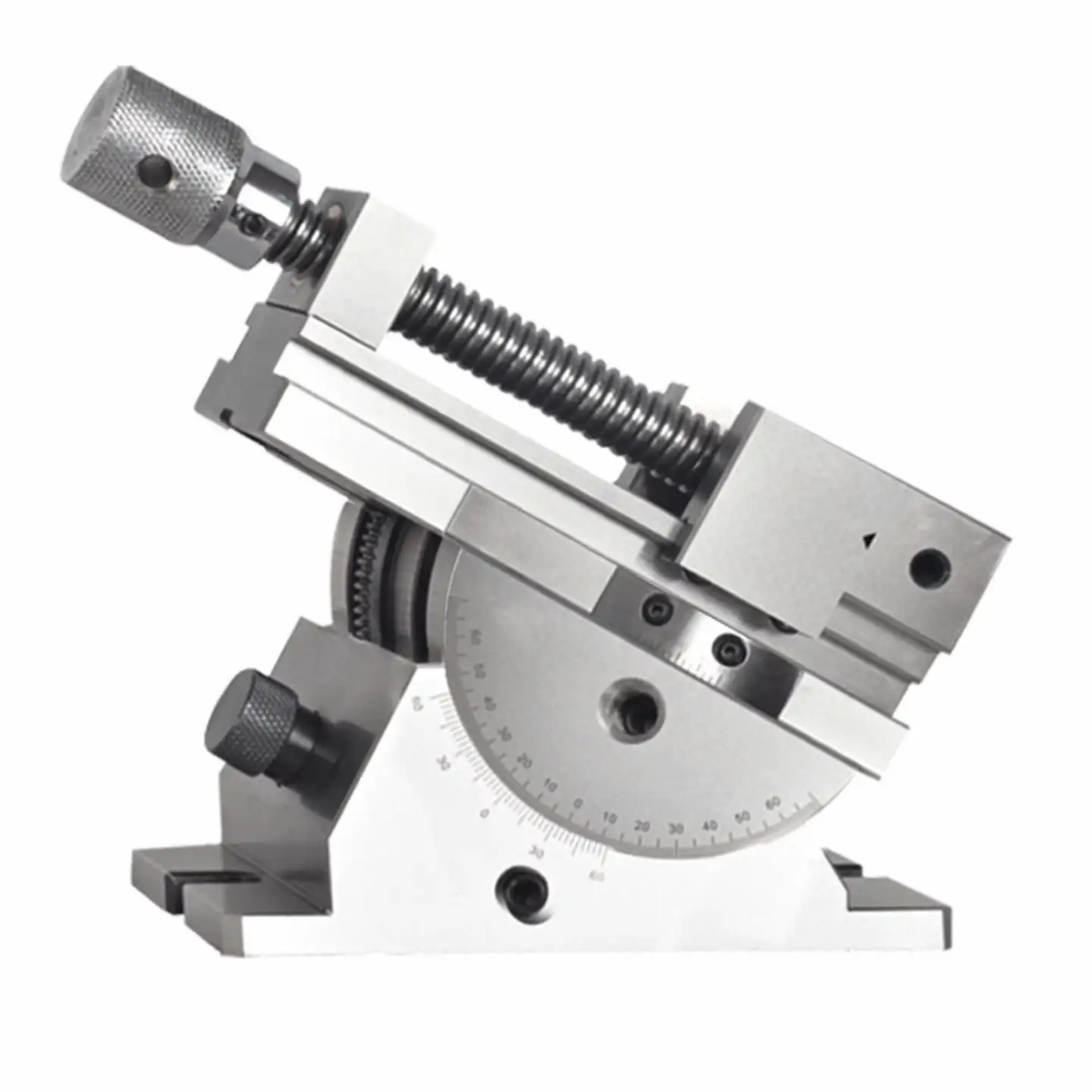

The JIYAN Universal Milling Vise combines 0‑50° tilt, 360° rotation, and 0.01 mm accuracy – fewer setups, faster changeovers, and zero compromise on rigidity.
