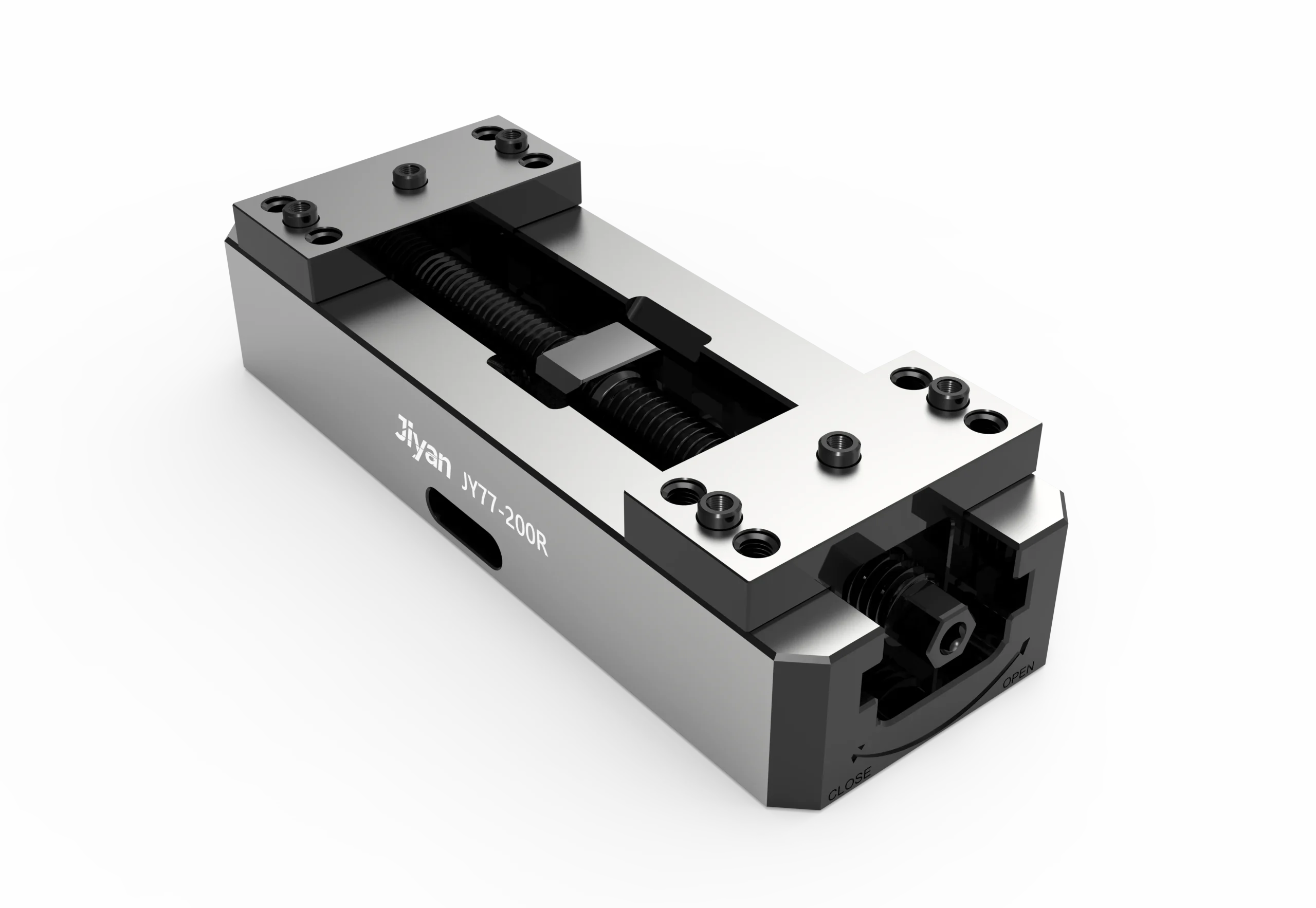

JY77-200R JIYAN Pneumatic Self-Centering Vise (Soft Jaw)

Specifications

Key Features

• JIYAN precision engineering – designed and manufactured to exacting standards

• Self‑centering design – automatically centers the workpiece for consistent positioning

• Soft jaw design – split type soft jaws allow custom machining for specific part geometries

• Low profile – only 53 mm height saves Z‑axis clearance on CNC machines

• High repeatability – 0.015mm for reliable production accuracy

• Zero point ready – 52 pull stud hole for direct mounting on zero point pallet systems

• High torque capacity – 70Nm clamping torque for secure workholding

• Compact and lightweight – 210×77 mm footprint and 4.1 kg weight save machine space

• Machinable jaws – soft jaws can be milled to match custom workpiece profiles

• Flexible mounting – M8 T‑slot × 4 positions for additional fixture securing

• Precision locating – dowel pin holes for accurate fixture registration

Application Scenarios

• CNC milling and drilling – ideal for large prismatic parts requiring centered clamping

• Automated pallet systems – 52 pull stud enables quick change on zero point systems

• Custom workpiece clamping – soft jaws can be machined to fit complex or delicate parts

• High‑mix / low‑volume production – quick jaw changes for different part sizes

• 4th/5th axis machining – compact width fits tight rotary table envelopes

• Delicate or finished surface clamping – soft jaws protect workpiece surfaces from damage

• Precision machining – 0.015mm repeatability for consistent part quality

• Low clearance applications – 53 mm profile fits machines with limited Z‑axis travel

Why Choose JIYAN

• Self‑centering advantage – eliminates manual centering, reduces setup time

• Soft jaw flexibility – machine jaws to exact part geometry for optimal grip

• Zero point ready – 52 pull stud hole allows direct mounting on zero point pallets

• Low profile design – saves valuable Z‑axis clearance on CNC machines

• Multiple mounting options – 52 pull stud + M8 T‑slot for secure fixture attachment

• Compact footprint – saves valuable machine table space

• Split jaw design – easy replacement and customization

• Precision locating – dowel pin holes ensure accurate and repeatable fixture positioning

• Precision ground surfaces – verified for flatness and parallelism

• Hardened steel body – durable construction for high‑cycle production

• JIYANVISE reliability – trusted by CNC professionals worldwide
